Dixon® R1ES-A

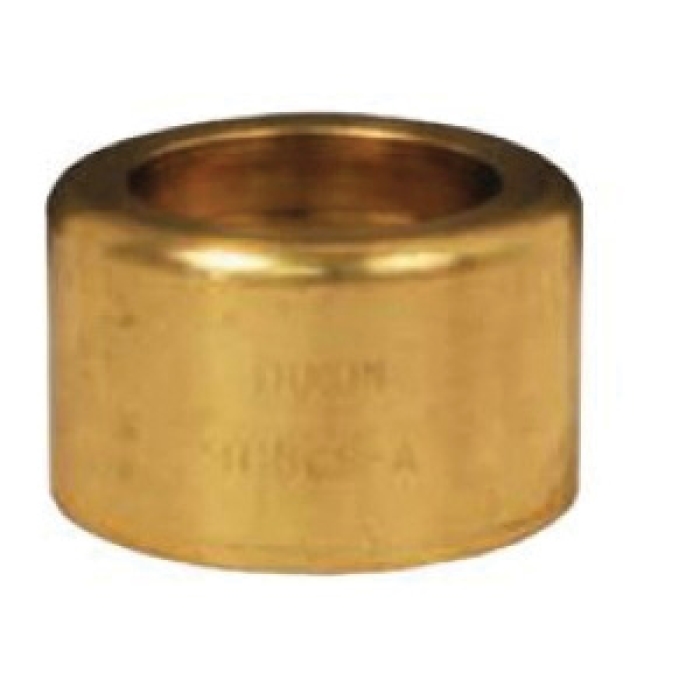

Dixon® Holedall™ 520-H Brass Ferrule, 1 in, 1-42/64 - 1-44/64 in OD

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN R1ES-A
  • MPN: R1ES-A
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Holedall™ Ferrule, Series: 520-H, Nominal Size: 1 in, 1 in ID, 1-42/64 - 1-44/64 in OD, 1-1/8 in Length, Brass, For Use With: Scovill Style Internally Expanding Permanent Couplings

California residents see Prop 65 WARNINGS

Fitting Type      :      Ferrule
Material      :      Brass
For Use With      :      Scovill Style Internally Expanding Permanent Couplings
Series      :      520-H
Nominal Size      :      1 in
Inside Diameter      :      1 in
Outside Diameter      :      1-42/64 - 1-44/64 in
Length      :      1-1/8 in

Standards/Certifications: API 1629 6th Edition Certified

  • Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    Applications: For discharge and suction service, transfer of fuel to airplanes, homes, ships and more

    Safety Notes: Do not interchange with other manufacturer's fittings.

  • Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Consult Dixon® for recommendations on usage.
  • Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material.
  • Compatibility of ferrule material with the environment in which it will be used is recommended.
  • Consult the Compatibility Chart or the Dixon® factory for material compatibility.
