Dixon® CS150-7SS

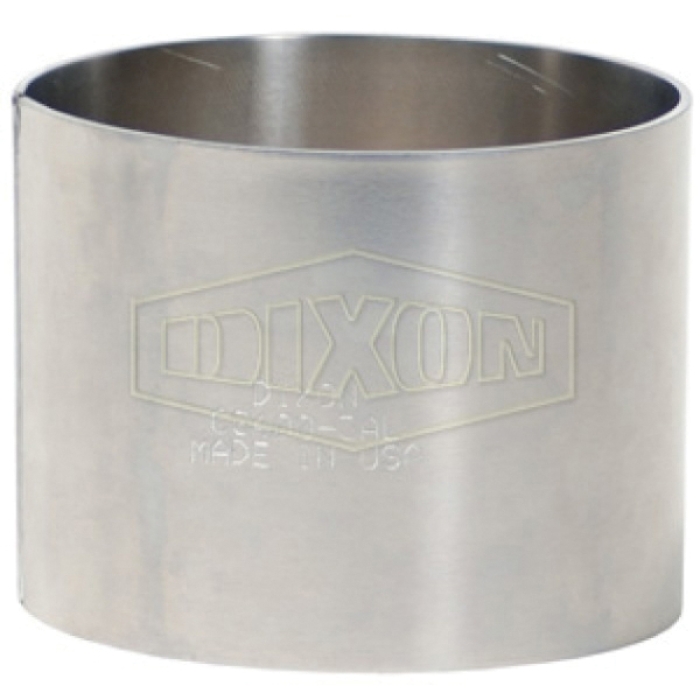

Dixon® King Crimp™ CS150-7SS 304 Stainless Steel Crimp Sleeve, 1-1/2 in, 2-1/64 - 2-4/64 in OD

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN CS150-7SS
  • MPN: CS150-7SS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® King Crimp™ Crimp Sleeve, Nominal Size: 1-1/2 in, 2-1/8 in ID, 2-1/64 - 2-4/64 in OD, 0.062 in Thick Wall, 2-1/2 in Length, 250 psig with King Crimp Cam & Groove, 300 psig with King Crimp ST Nipple, 304 Stainless Steel, For Use With: Crimp Style Shanks

California residents see Prop 65 WARNINGS

Fitting Type      :      Crimp Sleeve
Pressure Rating      :      250 psig with King Crimp Cam & Groove, 300 psig with King Crimp ST Nipple
Material      :      304 Stainless Steel
For Use With      :      Crimp Style Shanks
Nominal Size      :      1-1/2 in
Inside Diameter      :      2-1/8 in
Outside Diameter      :      2-1/64 - 2-4/64 in
Wall Thickness      :      0.062 in
Length      :      2-1/2 in

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

Applications: For liquid service only

Safety Notes: Only use the crimp style shanks with the crimp style sleeves and ferrules.

  • Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.
  • Pressure rating given at 70 deg F, consult Dixon for pressure rating at elevated temperatures.
