Stauff® RF-045-G-10-V-U20-O-G20 STA RF045G10VU20OG | Tipco Technologies
Stauff® RF-045-G-10-V-U20-O-G20
Send Print
  1. pin-int

Stauff® RF-045-G-10-V-U20-O-G20

Stauff® RF Series Return Line Filter, 160 Lpm, 10 um, Inorganic Glass Fiber

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA RF045G10VU20OG
  • MPN: RF-045-G-10-V-U20-O-G20
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® Return Line Filter, RF Series, 160 Lpm, Filter Rating: 10 um, Filter Media: Inorganic Glass Fiber, 232 psi, FKM Seal

California residents see Prop 65 WARNINGS

Product Type      :      Return Line Filter
Series      :      RF
Flow Rate      :      160 Lpm
Filter Rating      :      10 um
Filter Media      :      Inorganic Glass Fiber
Pressure Rating      :      232 psi
Seal Material      :      FKM

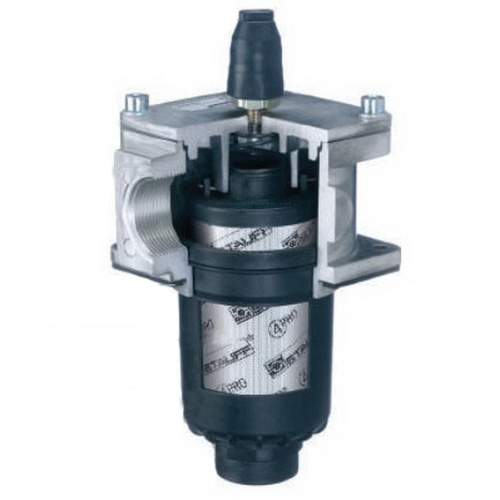

Stauff® RF return-line filters are designed as tank top filters. They are mounted directly on the tank top and when 100% of the system's oil is filtered they provide the optimum removal of contaminant from the system. This provides the pump with clean oil thus reducing contaminant generated wear. The filter bowl is designed to return the oil beneath the surface thus preventing the entrainment of air by the returning oil. A high-efficiency of contaminant removal is assured by using Stauff® RE Replacement Filter Elements. The high dirt-hold capacity of Stauff® Elements ensures a long service life and as a result reduced maintenance costs.

  • 1-5/8 in SAE O-ring threaded connection
  • Without clogging indicator
