Stauff® SF-045-G-10-B-T-U20-B-VT

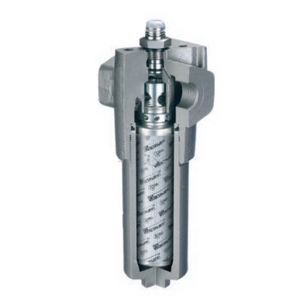

Stauff® SF-045 High-Pressure Filter Housing, 160 Lpm, 10 um, Inorganic Glass Fiber

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA SF045G10BTU20BVT
  • MPN: SF-045-G-10-B-T-U20-B-VT
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® High-Pressure Filter Housing, SF-045 Series, 160 Lpm, Filter Rating: 10 um, Filter Media: Inorganic Glass Fiber, NBR Seal

California residents see Prop 65 WARNINGS

Product Type      :      Filter Housing
Series      :      SF-045
Flow Rate      :      160 Lpm
Filter Rating      :      10 um
Filter Media      :      Inorganic Glass Fiber
Seal Material      :      NBR

Stauff® SF Series high-pressure filters are designed for in-line hydraulic applications, with a maximum operating pressure of 420 bar/6000 psi. Used together with Stauff® SE series Filter elements, a high-efficiency of contaminant removal is assured. The high dirt-hold capacity of the elements ensures long service life and, as a result, reduced maintenance costs.

  • T-type flange
  • 1-5/8-12 UNF SAE O-ring thread connection
  • Bypass valve
  • Visual, with manual reset and thermostop
