Stauff® HI-V-B-B5 STA HIVBB5 | Tipco Technologies
Stauff® HI-V-B-B5
Send Print
  1. pin-int

Stauff® HI-V-B-B5

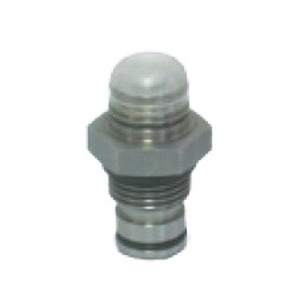

Stauff® HI-V Stainless Steel Clogging Visual Manual Reset Indicator, G 1/2, 117 mm L x 108 mm W, For High-Pressure Filter

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA HIVBB5
  • MPN: HI-V-B-B5
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® Clogging Visual Manual Reset Indicator, HI-V Series, Size: G 1/2, Stainless Steel, 117 mm Length, 108 mm Width, For Use With: High-Pressure Filters

California residents see Prop 65 WARNINGS

Product Type      :      Clogging Indicator
Series      :      HI-V
Size      :      G 1/2
Material      :      Stainless Steel
Length      :      117 mm
Width      :      108 mm
For Use With      :      High-Pressure Filters

Stauff® pressure filters have a wide range of clogging indicators available. If no indicator is specified, the port is sealed by a plug (HI-O). The clogging indicators are actuated by the differential pressure across the element. The special piston design minimizes the effects of peak pressures in the system. An optional thermal lockout (thermo stop) is available to prevent false indication under cold start conditions. Fluid temperature have to be at least +20 deg C (+68 deg F) for the indicator to function.

  • Manual reset the indicator continues to display the clogged signal even through the differential pressure may have fallen
  • Pressing the plastic cover down will reset the indicator
  • Made in Germany
