Banjo® MVS220CF

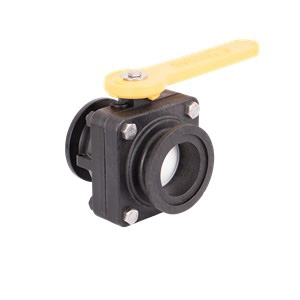

Banjo® MVS220CF Polypropylene Stubby Manifold Valve, 2 in Full Port Flange, 4-1/2 in L

  • Manufacturers: Banjo Corporation
  • Brand Name: Banjo®
  • Tipco Part No: BAN MVS220CF
  • MPN: MVS220CF
  • Min. Order Qty: 9
  • Qty. Interval: 9
  • Register to see Availability

Banjo® Stubby Manifold Valve, Inlet Size: 2 in, Outlet Size: 2 in, Connection Type: Flange, 150 psi, Polypropylene, 4-1/2 in Length, 5-1/4 in Height

Length      :      4-1/2 in
Height      :      5-1/4 in
Pressure Rating      :      150 psi
Connection Type      :      Flange
Material      :      Polypropylene
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • FKM seal
  • Precision molded in polypropylene
  • Polypropylene is reinforced with fiberglass for additional strength
  • PTFE self-lubricating stem bushings and seats cannot stick or bind
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • The valve opens and closes with very little pressure on the handle
  • Stainless steel bolts
  • video https://youtu.be/ZMveiyz76SM
