Banjo® V050

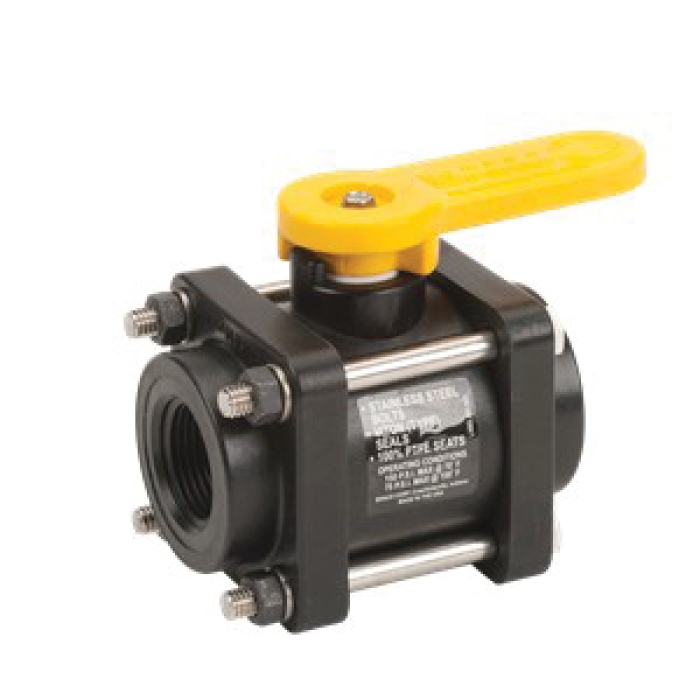

Banjo® V050 Polypropylene 4-Bolt Full-Port Ball Valve, 1/2 in FPT, 300 psi

  • Manufacturers: Banjo Corporation
  • Brand Name: Banjo®
  • Tipco Part No: BAN V050
  • MPN: V050
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Banjo® 4-Bolt Full-Port Ball Valve, Nominal Size: 1/2 in, Connection Type: FPT, Actuator Type: Lever, Polypropylene, PTFE Stem Bushing and Seat Trim, FKM Seal, 3-1/2 in Length, 2-1/2 in Width, 150 deg F, 300 psi

Material      :      Polypropylene
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • Precision molded in polypropylene reinforced with fiberglass for additional strength
  • PTFE self-lubricating stem bushings and seats cannot stick or bind
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • The valve opens and closes with very little pressure on the handle
  • Stainless steel bolts
