Banjo® V125FP
Send Print
  1. pin-int

Banjo® V125FP

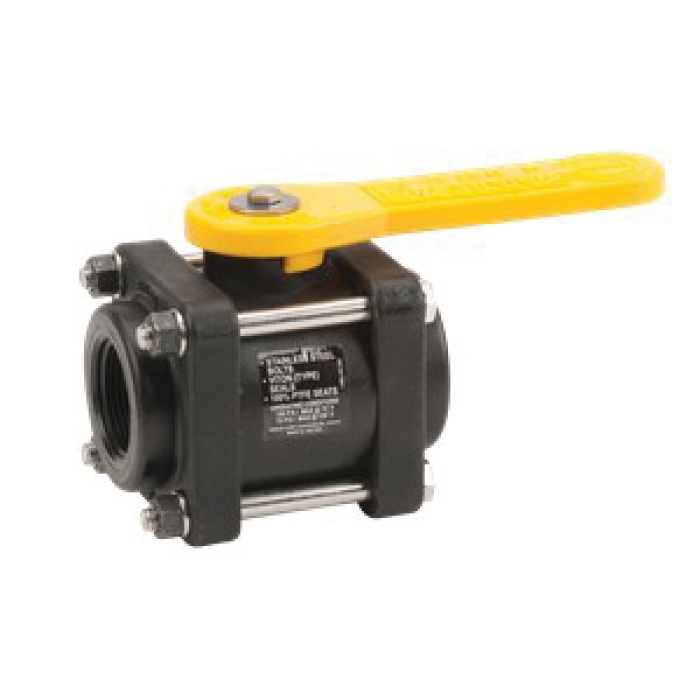

Banjo® V125FP Polypropylene 4-Bolt Full-Port Ball Valve, 1-1/4 in FPT, 225 psi

  • Manufacturers: Banjo Corporation
  • Brand Name: Banjo®
  • Tipco Part No: BAN V125FP
  • MPN: V125FP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Banjo® 4-Bolt Full-Port Ball Valve, Nominal Size: 1-1/4 in, Connection Type: FPT, Actuator Type: Lever, Polypropylene, PTFE Stem Bushing and Seat Trim, FKM Seal, 4-19/32 in Length, 3-9/16 in Width, 150 deg F, 225 psi

Product Type      :      Ball Valve
Length      :      4-19/32 in
Width      :      3-9/16 in
Temperature Rating      :      150 deg F
Pressure Rating      :      225 psi
Nominal Size      :      1-1/4 in
Connection Type      :      FPT
Actuator Type      :      Lever
Material      :      Polypropylene
Trim Material      :      PTFE Stem Bushing and Seat
Seal Material      :      FKM
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • Precision molded in polypropylene reinforced with fiberglass for additional strength
  • PTFE self-lubricating stem bushings and seats cannot stick or bind
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • The valve opens and closes with very little pressure on the handle
  • Stainless steel bolts
