Banjo® V200
Send Print
  1. pin-int

Banjo® V200

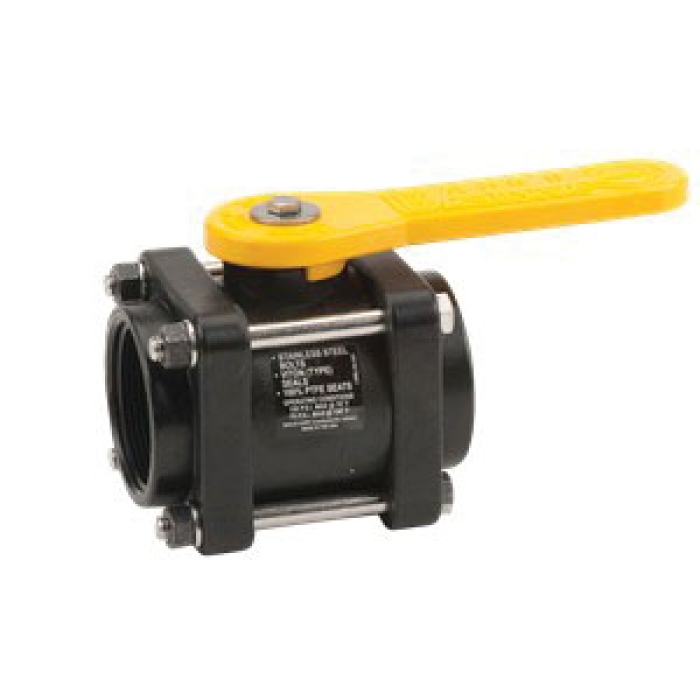

Banjo® V200 Polypropylene 4-Bolt Standard-Port Ball Valve, 2 in FPT, 225 psi

  • Manufacturers: Banjo Corporation
  • Brand Name: Banjo®
  • Tipco Part No: BAN V200
  • MPN: V200
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Banjo® 4-Bolt Standard-Port Ball Valve, Nominal Size: 2 in, Connection Type: FPT, Actuator Type: Lever, Polypropylene, PTFE Stem Bushing and Seat Trim, FKM Seal, 4-5/8 in Length, 3-9/16 in Width, 150 deg F, 225 psi

Material      :      Polypropylene
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • Precision molded in polypropylene reinforced with fiberglass for additional strength
  • PTFE self-lubricating stem bushings and seats cannot stick or bind
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • The valve opens and closes with very little pressure on the handle
  • Stainless steel bolts
