Dixon® BV2IGN07511-EA
Send Print
  1. pin-int

Dixon® BV2IGN07511-EA

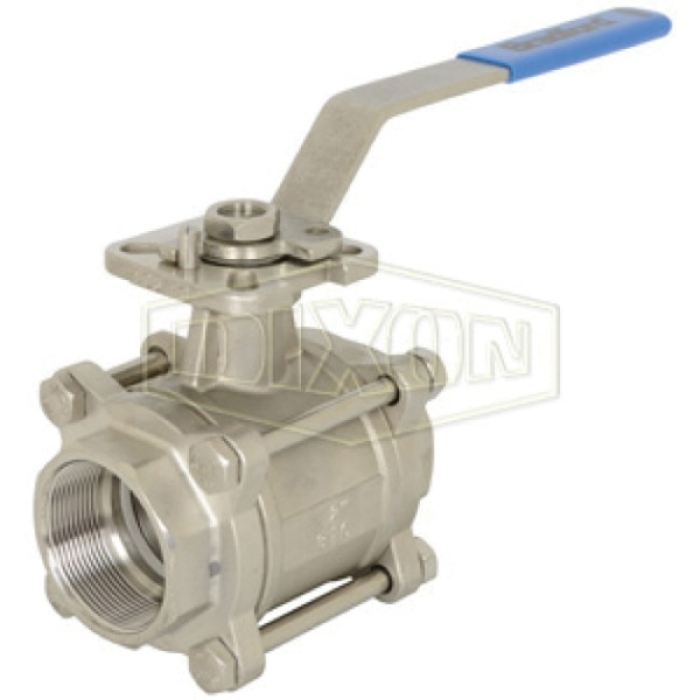

Dixon® BV2IGN07511-EA CF8M Stainless Steel 3-Piece Industrial Ball Valve, 3/4 in FNPT, 1000 psi WOG At 65 deg F

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN BV2IGN07511-EA
  • MPN: BV2IGN07511-EA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® 3-Piece Industrial Ball Valve, Nominal Size: 3/4 in, Connection Type: FNPT, CF8M Stainless Steel, 15% Glass Reinforced RTFE Stem Trim, 3.1 in Length, 400 deg F, 1000 psi WOG At 65 deg F

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Length      :      3.1 in
Temperature Rating      :      400 deg F
Pressure Rating      :      1000 psi WOG At 65 deg F
Nominal Size      :      3/4 in
Connection Type      :      FNPT
Material      :      CF8M Stainless Steel
Trim Material      :      15% Glass Reinforced RTFE Stem
  • Full port
  • FNPT end connection
  • Blowout-proof stem
  • Live-loaded stem packing
  • Swing out design for easy maintenance

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
