Dixon® BBV200LV

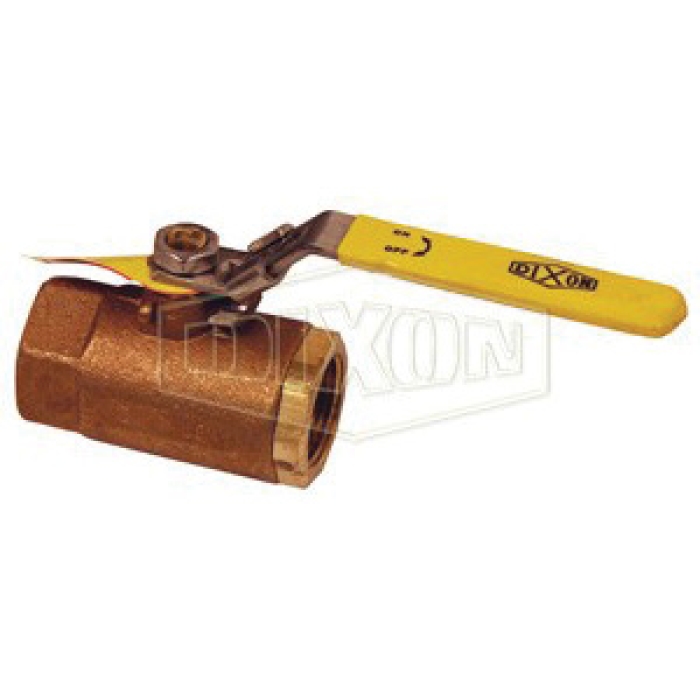

Dixon® BBV200LV Bronze Safety Vented Standard-Port Ball Valve, 2 in FPT, 0 - 125 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN BBV200LV
  • MPN: BBV200LV
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Safety Vented Standard-Port Ball Valve, Nominal Size: 2 in, Connection Type: FPT, Bronze, RTFE Trim, 0 - 125 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Pressure Rating      :      0 - 125 psi
Nominal Size      :      2 in
Connection Type      :      FPT
Material      :      Bronze
Trim Material      :      RTFE
  • Blowout-proof stem design
  • Adjustable packing gland
  • Vent downstream air in accordance with OSHA regulation 1910.147 for pneumatic systems
  • Chromium-plated ball
  • RTFE seats and stuffing box ring

Applications: For air service only
