Dixon® BBV50SR

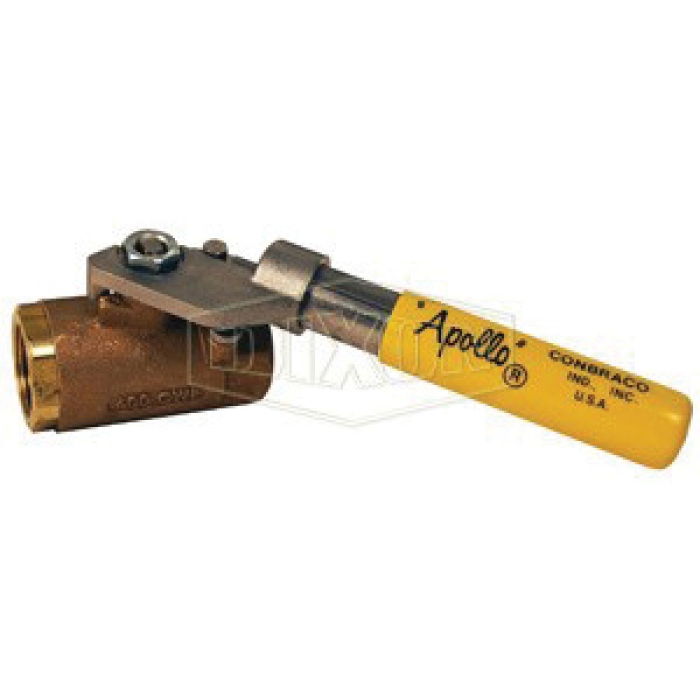

Dixon® BBV50SR Brass Deadman Full-Port Ball Valve, 1/2 in, 600 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN BBV50SR
  • MPN: BBV50SR
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Deadman Full-Port Ball Valve, Nominal Size: 1/2 in, Connection Type: FPT, Actuator Type: Spring Return Lever Handle, Brass, RTFE Trim, 600 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Pressure Rating      :      600 psi
Nominal Size      :      1/2 in
Connection Type      :      FPT
Actuator Type      :      Spring Return Lever Handle
Material      :      Brass
Trim Material      :      RTFE
  • Blowout-proof stem design
  • Adjustable packing gland
  • Spring return closes valve when not held open
  • Operating torque approximately three times standard valve torque
  • Stainless steel lever
  • Chromium-plated ball
  • RTFE seats and stuffing box ring
