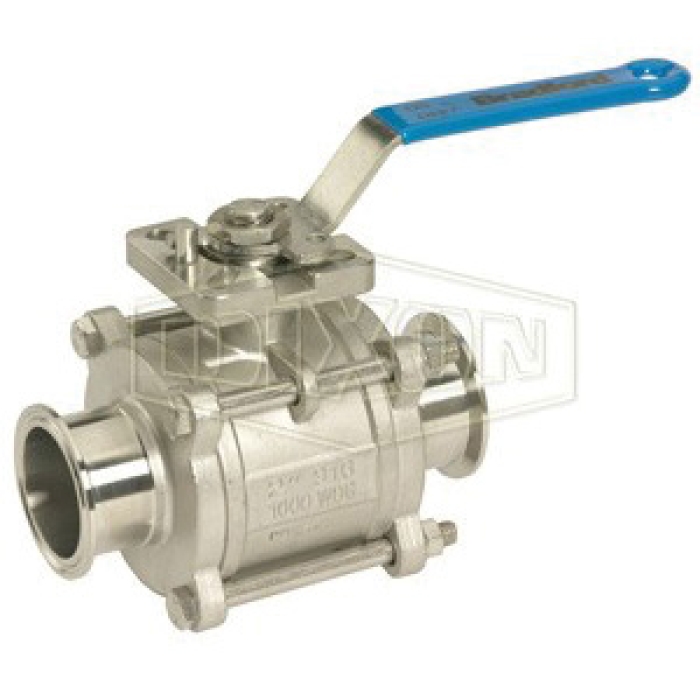

Dixon® 2-Way 3-Piece Encapsulated Sanitary Ball Valve, Nominal Size: 1-1/2 in, Connection Type: Clamp, Actuator Type: Handle, CF8M Stainless Steel, Virgin PTFE Trim, 3.2 in Length, 5.6 in Width, 1000 psi
California residents see Prop 65 WARNINGS
| Product Type | : | Ball Valve |
| Length | : | 3.2 in |
| Width | : | 5.6 in |
| Pressure Rating | : | 1000 psi |
| Nominal Size | : | 1-1/2 in |
| Connection Type | : | Clamp |
| Actuator Type | : | Handle |
| Material | : | CF8M Stainless Steel |
| Trim Material | : | Virgin PTFE |
- Balanced encapsulated construction minimizes cold flow
- Live-loaded stem packing
- Precision stainless steel balls reduce torque and friction losses while extending seat life
- Lockable handle can prevent accidental actuation
- Standard internal entry blowout proof stem design
- Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow
- Compact design for areas with tight space restrictions
- Specified for applications requiring a low co-efficient of friction
- ID polish is R¿ 32 minimum
- Fully encapsulated construction produces bubble tight seal
- Integral ISO 5211 mounting pad
- CF8M stainless steel body, ends and ball
Applications: For most sanitary services
