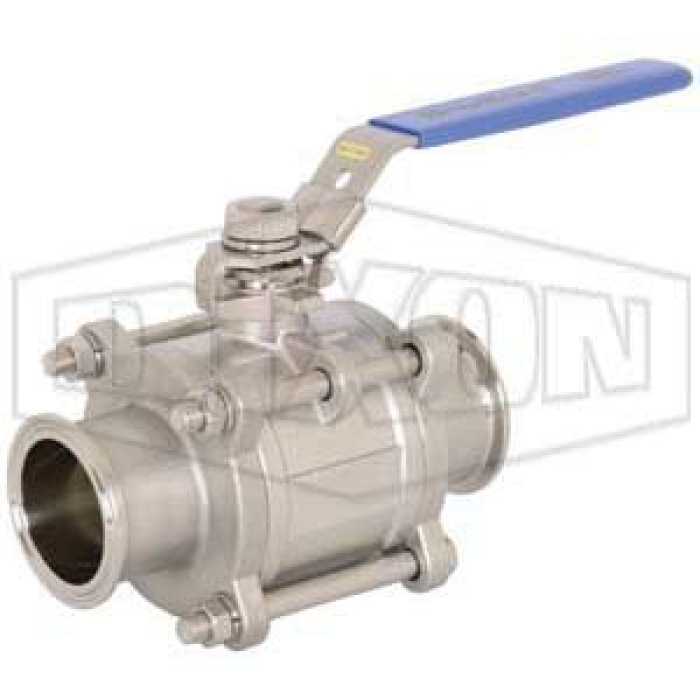

Dixon® 2-Way 3-Piece Non-Encapsulated Ball Valve, Nominal Size: 3/4 in, Connection Type: Clamp, Actuator Type: Handle, CF8M Stainless Steel, RTFE Trim, 4.7 in Width, 300 deg F, 1000 psi
California residents see Prop 65 WARNINGS
| Product Type | : | Ball Valve |
| Width | : | 4.7 in |
| Temperature Rating | : | 300 deg F |
| Pressure Rating | : | 1000 psi |
| Nominal Size | : | 3/4 in |
| Connection Type | : | Clamp |
| Actuator Type | : | Handle |
| Material | : | CF8M Stainless Steel |
| Trim Material | : | RTFE |
- Blowout-proof stem design
- Live-loaded stem packing
- Lockable handle
- CF8M stainless steel body, ends and ball
- 15% glass reinforced RTFE seats
- ID polish is R¿ 32 minimum
Specification Sheet
