Dixon® BV3IGLF-0751-A
Send Print
  1. pin-int

Dixon® BV3IGLF-0751-A

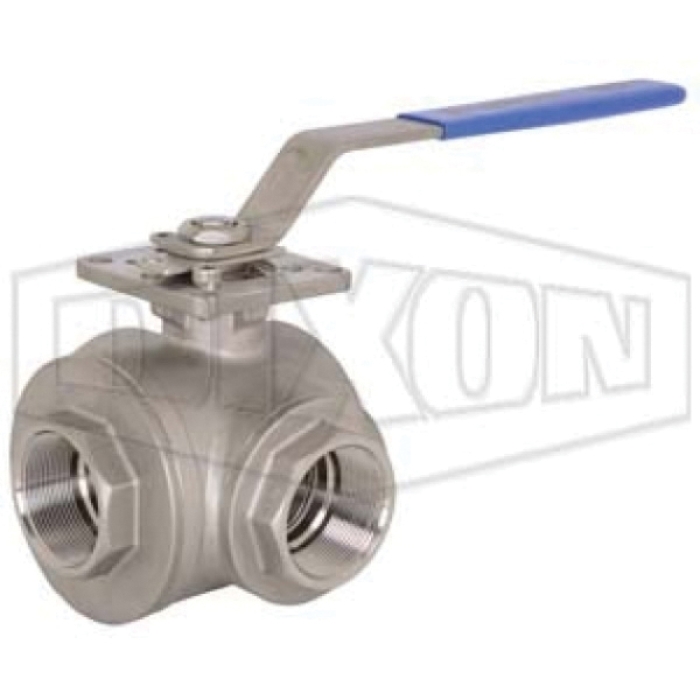

Dixon® BV3IGLF-0751-A CF8M Stainless Steel 3-Way Industrial Ball Valve, 3/4 in FNPT, 800 - 1000 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN BV3IGLF-0751-A
  • MPN: BV3IGLF-0751-A
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® 3-Way Industrial Ball Valve, Nominal Size: 3/4 in, Connection Type: FNPT, CF8M Stainless Steel, RTFE Seat Trim, RTFE Seal, 350 deg F, 800 - 1000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Temperature Rating      :      350 deg F
Pressure Rating      :      800 - 1000 psi
Nominal Size      :      3/4 in
Connection Type      :      FNPT
Material      :      CF8M Stainless Steel
Trim Material      :      RTFE Seat
Seal Material      :      RTFE
  • Full port
  • FNPT end connection
  • Blowout-proof stem
  • Live-loaded stem packing
  • 276 in-lb break torque

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
