Dixon® SSBV200SR

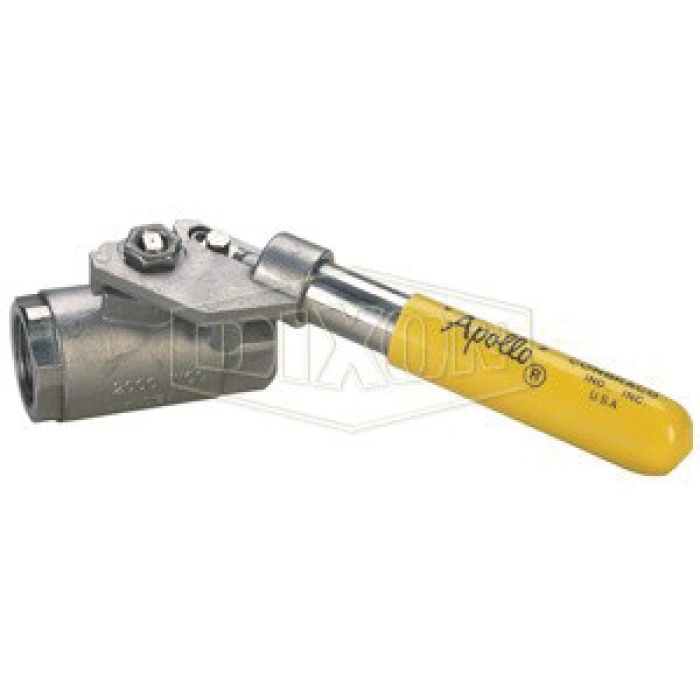

Dixon® SSBV200SR 316 Stainless Steel Deadman Standard-Port Ball Valve, 2 in FPT, 1500 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN SSBV200SR
  • MPN: SSBV200SR
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Deadman Standard-Port Ball Valve, Nominal Size: 2 in, Connection Type: FPT, Actuator Type: Spring Return Handle, 316 Stainless Steel, PTFE Seal, 1500 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Pressure Rating      :      1500 psi
Nominal Size      :      2 in
Connection Type      :      FPT
Actuator Type      :      Spring Return Handle
Material      :      316 Stainless Steel
Seal Material      :      PTFE
  • Blowout-proof stem design
  • Adjustable packing gland
  • Spring return closes valve when not held open
  • Operating torque approximately three times standard valve torque
