Dixon® SSBV250

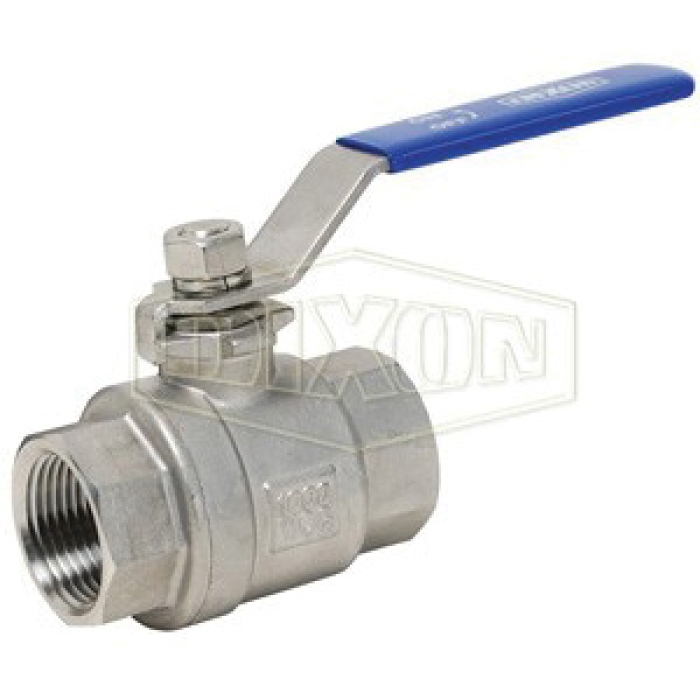

Dixon® SSBV250 316 Stainless Steel Full-Port Ball Valve, 2-1/2 in FPT, 800 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN SSBV250
  • MPN: SSBV250
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Full-Port Ball Valve, Nominal Size: 2-1/2 in, Connection Type: FPT, 316 Stainless Steel, RPTFE Trim, 7-3/4 in Height, 13-1/2 in Width, -20 to 446 deg F, 800 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Height      :      7-3/4 in
Width      :      13-1/2 in
Temperature Rating      :      -20 to 446 deg F
Pressure Rating      :      800 psi
Nominal Size      :      2-1/2 in
Connection Type      :      FPT
Material      :      316 Stainless Steel
Trim Material      :      RPTFE
  • Blowout-proof stem design
  • 316 stainless steel body, ball and stem
  • RPTFE seat, joint gasket and thrust washer

Applications: For use in water, oil and gas applications
