Jomar Valve® A1000-2 JOM A1000-2/AE-35024VDC | Tipco Technologies
Jomar Valve® A1000-2
Send Print
  1. pin-int

Jomar Valve® A1000-2

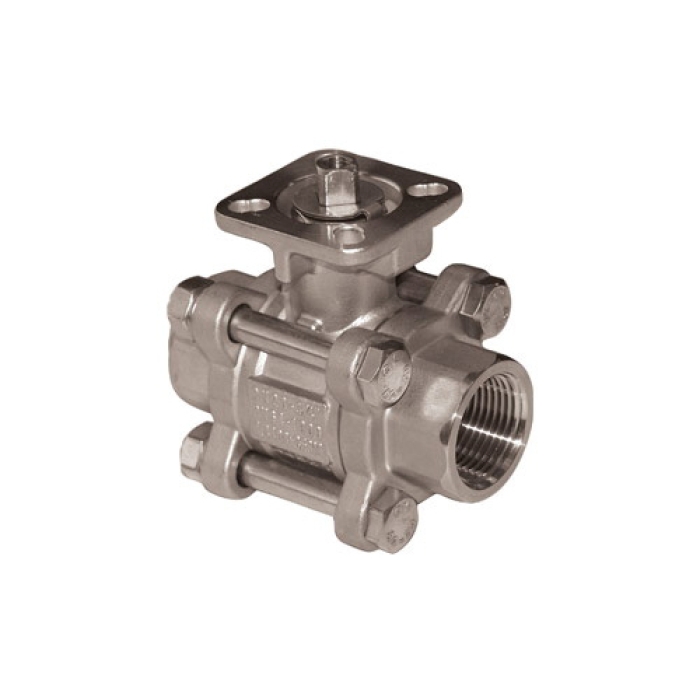

Jomar Valve® A1000 CF8M Stainless Steel 3-Piece 4-Bolt Full-Port Direct Mount Ball Valve with Mounting Pad, 2 in NPT

  • Manufacturers: Jomar Valve
  • Brand Name: Jomar Valve®
  • Tipco Part No: JOM A1000-2/AE-35024VDC
  • MPN: A1000-2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Jomar Valve® 3-Piece 4-Bolt Full-Port Direct Mount Ball Valve with Mounting Pad, A1000 Series, Nominal Size: 2 in, Connection Type: NPT, CF8M Stainless Steel, PTFE Seal, 5.52 in Length, 2-3/4 in Height

Product Type      :      Ball Valve
Length      :      5.52 in
Height      :      2-3/4 in
Series      :      A1000
Nominal Size      :      2 in
Connection Type      :      NPT
Material      :      CF8M Stainless Steel
Seal Material      :      PTFE
  • Blowout-proof stem design
  • Adjustable stem packing
  • ISO 5211 mounting pad
  • Three-piece swing out body
  • Wetted surface contain less than 0.25% lead content
  • pdfSpecification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Jomar_Valve_A1000-2_SS.pdf
