Stauff® BBV-2-C316U-0001-M-LD3

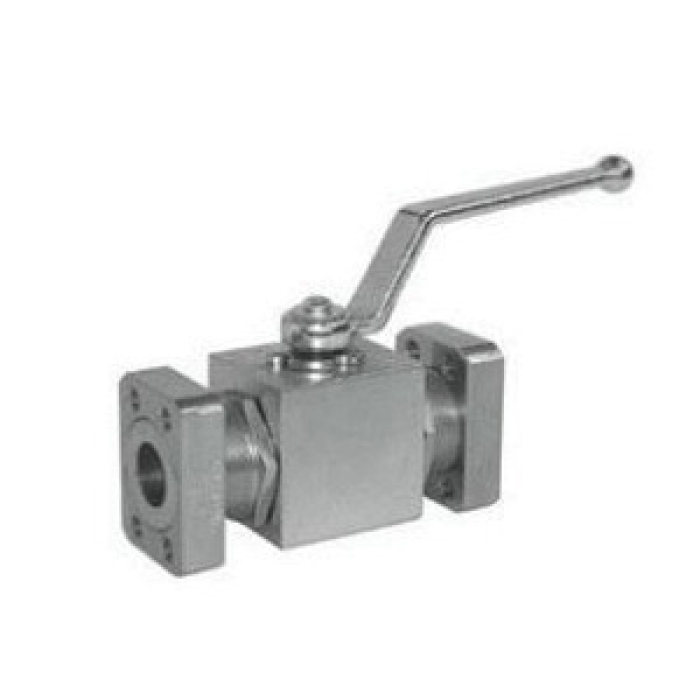

Stauff® BBV-2-C Zinc/Iron-Plated Carbon Steel 2-Way High-Pressure Block Body Ball Valve, 1 in SAE Code 61 Mating Flange, 4600 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA BBV2C2316U0001MLD3
  • MPN: BBV-2-C316U-0001-M-LD3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 2-Way High-Pressure Block Body Ball Valve, BBV-2-C Series, Nominal Size: 1 in, Connection Type: SAE Code 61 Flange, Actuator Type: Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, Finish: Zinc/Iron-Plated, 5.83 in Length, 3.27 in Height, 2.28 in Width, -4 to 212 deg F, 4600 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Finish      :      Zinc/Iron-Plated
Length      :      5.83 in
Height      :      3.27 in
Width      :      2.28 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      4600 psi
Series      :      BBV-2-C
Nominal Size      :      1 in
Connection Type      :      SAE Code 61 Flange
Actuator Type      :      Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
  • Block body design for in-line assembly
  • Supplied with off-set lever
  • With lock device

Applications: For hydraulic applications
