Stauff® BBV-2-G12-8001-M

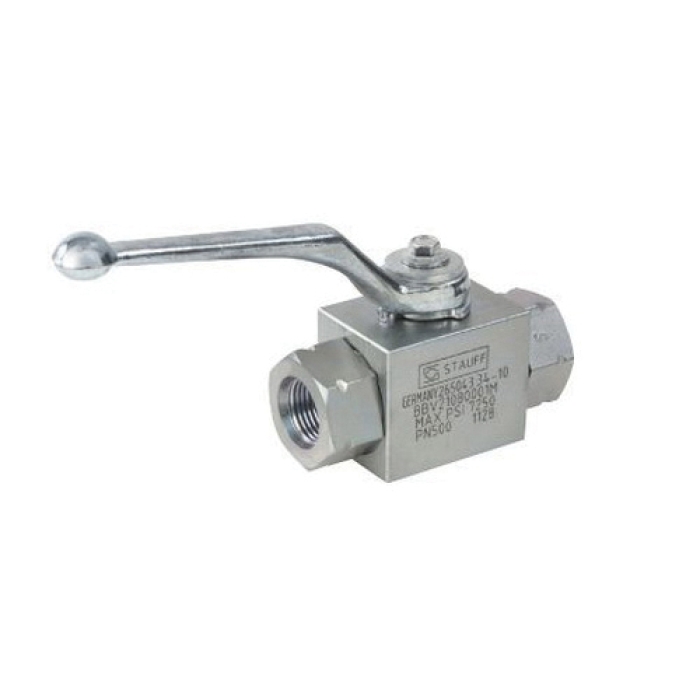

Stauff® BBV-2-G Zinc/Nickel-Plated Carbon Steel 2-Way High-Pressure Block Body Ball Valve, G 3/4 Female BSP, 6000 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA BBV2G128001M
  • MPN: BBV-2-G12-8001-M
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 2-Way High-Pressure Block Body Ball Valve, BBV-2-G Series, Nominal Size: G 3/4, Connection Type: Female BSP, Actuator Type: Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, Finish: Zinc/Nickel-Plated, 3.72 in Length, 2.94 in Height, 1.92 in Width, -4 to 212 deg F, 6000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Finish      :      Zinc/Nickel-Plated
Length      :      3.72 in
Height      :      2.94 in
Width      :      1.92 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      6000 psi
Series      :      BBV-2-G
Nominal Size      :      G 3/4
Connection Type      :      Female BSP
Actuator Type      :      Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
  • Block body design for in-line assembly
  • Supplied with off-set lever

Applications: For hydraulic applications
