Stauff® BBV-2-U06-1101-M
Send Print
  1. pin-int

Stauff® BBV-2-U06-1101-M

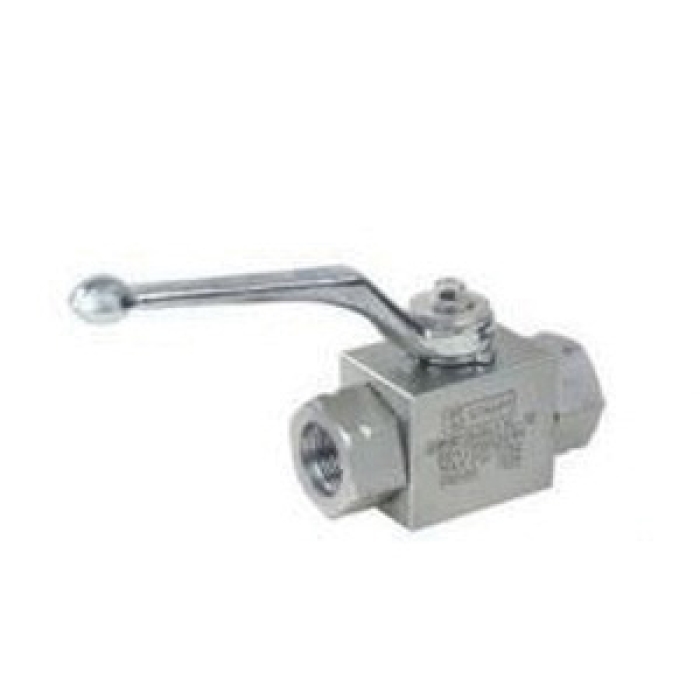

Stauff® BBV-2-U 316Ti Stainless Steel 2-Way High-Pressure Block Body Ball Valve, 3/8 in SAE Threaded, 7250 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA BBV2U061101M
  • MPN: BBV-2-U06-1101-M
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 2-Way High-Pressure Block Body Ball Valve, BBV-2-U Series, Nominal Size: 3/8 in, Connection Type: SAE Threaded, Actuator Type: Lever, 316Ti Stainless Steel, 316Ti Stainless Steel-V4A Ball and Stem, Delrin Seat Trim, FKM Seal, 2.82 in Length, 2.04 in Height, 1-1/4 in Width, -4 to 212 deg F, 7250 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Length      :      2.82 in
Height      :      2.04 in
Width      :      1-1/4 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      7250 psi
Series      :      BBV-2-U
Nominal Size      :      3/8 in
Connection Type      :      SAE Threaded
Actuator Type      :      Lever
Material      :      316Ti Stainless Steel
Trim Material      :      316Ti Stainless Steel-V4A Ball and Stem, Delrin Seat
Seal Material      :      FKM
  • Block body design for in-line assembly
  • Supplied with off-set lever

Applications: For hydraulic applications
