Stauff® BV-2-C3624U-0001-M
Send Print
  1. pin-int

Stauff® BV-2-C3624U-0001-M

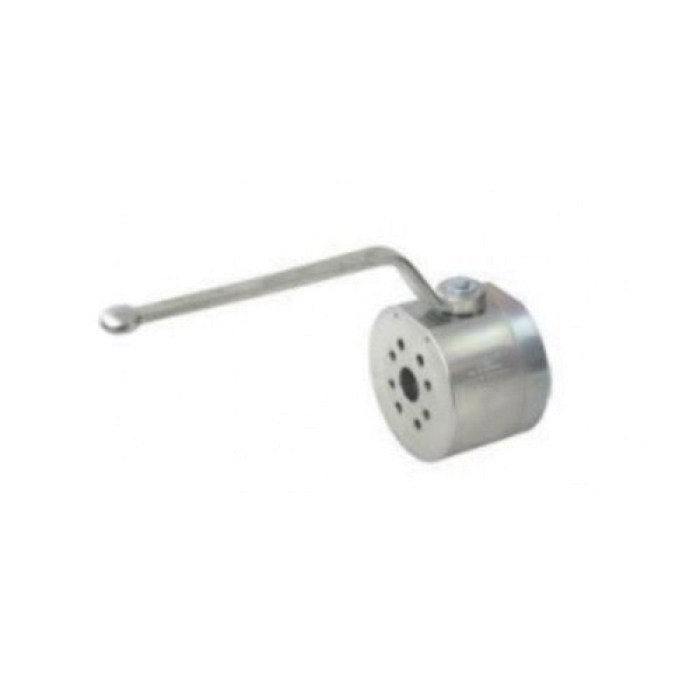

Stauff® BV-2-C Zinc/Iron-Plated Carbon Steel 2-Way High-Pressure Round Body Ball Valve, 1-1/2 in SAE Code 61 Direct Flange, 6000 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA BV2C3624U0001M
  • MPN: BV-2-C3624U-0001-M
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 2-Way High-Pressure Round Body Ball Valve, BV-2-C Series, Nominal Size: 1-1/2 in, Connection Type: SAE Code 61 Flange, Actuator Type: Adjustable Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, Finish: Zinc/Iron-Plated, 4.33 in Length, 7.01 in Height, -4 to 212 deg F, 6000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Finish      :      Zinc/Iron-Plated
Length      :      4.33 in
Height      :      7.01 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      6000 psi
Series      :      BV-2-C
Nominal Size      :      1-1/2 in
Connection Type      :      SAE Code 61 Flange
Actuator Type      :      Adjustable Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
  • Round body design for in-line assembly
  • Machined parts for reduced torque operation
  • Designed for direct-mount to reduce threads in fluid flow

Applications: For hydraulic applications
