Stauff® BV-2-C340U-0001-M-LD7

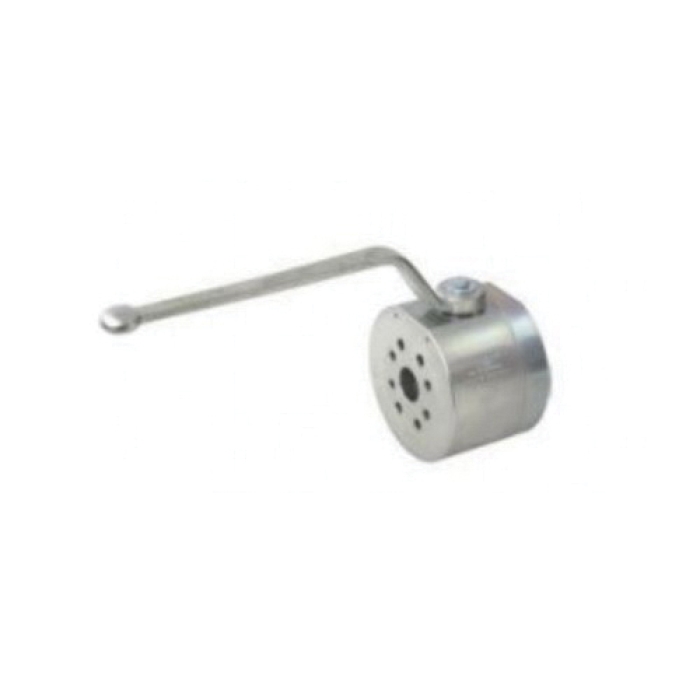

Stauff® BV-2-C Zinc/Iron-Plated Carbon Steel 2-Way High-Pressure Round Body Ball Valve, 2-1/2 in SAE Code 61 Direct Flange, 2500 psi, With Locking Device

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA BV2C340U0001MLD7
  • MPN: BV-2-C340U-0001-M-LD7
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 2-Way High-Pressure Round Body Ball Valve, BV-2-C Series, Nominal Size: 2-1/2 in, Connection Type: SAE Code 61 Flange, Actuator Type: Adjustable Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, Finish: Zinc/Iron-Plated, 5.91 in Length, 10.2 in Height, -4 to 212 deg F, 2500 psi

Product Type      :      Ball Valve
Finish      :      Zinc/Iron-Plated
Length      :      5.91 in
Height      :      10.2 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      2500 psi
Series      :      BV-2-C
Nominal Size      :      2-1/2 in
Connection Type      :      SAE Code 61 Flange
Actuator Type      :      Adjustable Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
  • Round body design for in-line assembly
  • Machined parts for reduced torque operation
  • Designed for direct-mount to reduce threads in fluid flow
  • Supplied with locking device

Applications: For hydraulic applications
