Stauff® FBV-2-F632-0001-M STA FBV2F6320001M | Tipco Technologies
Stauff® FBV-2-F632-0001-M
Send Print
  1. pin-int

Stauff® FBV-2-F632-0001-M

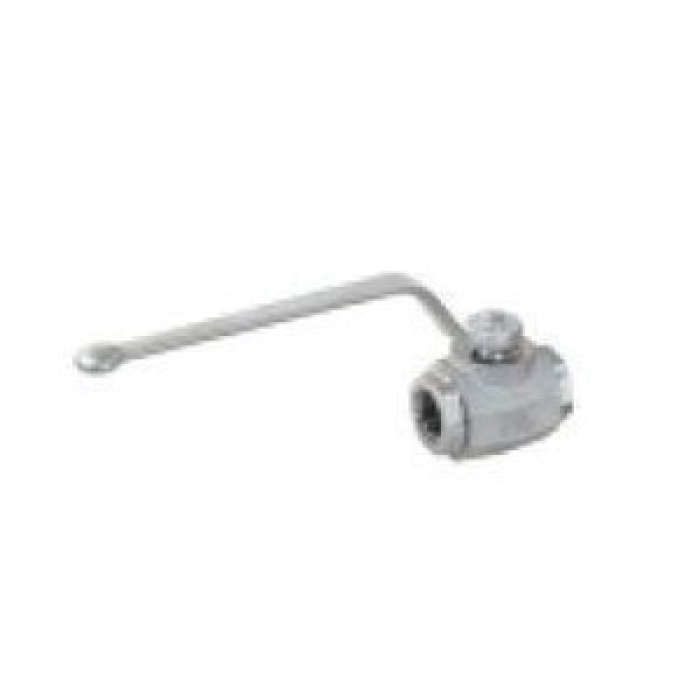

Stauff® FBV-2-F Zinc/Iron-Plated Carbon Steel 2-Way High-Pressure Forged Body Ball Valve, 2 in SAE Code 62 Flange, 6000 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA FBV2F6320001M
  • MPN: FBV-2-F632-0001-M
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 2-Way High-Pressure Forged Body Ball Valve, FBV-2-F Series, Nominal Size: 2 in, Connection Type: SAE Code 62 Flange, Actuator Type: Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, Finish: Zinc/Iron-Plated, 12.44 in Length, 5.43 in Height, -4 to 212 deg F, 6000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Finish      :      Zinc/Iron-Plated
Length      :      12.44 in
Height      :      5.43 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      6000 psi
Series      :      FBV-2-F
Nominal Size      :      2 in
Connection Type      :      SAE Code 62 Flange
Actuator Type      :      Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
  • Forged body design for in-line assembly
  • Supplied with off-set lever
  • Designed for global Air King™

Applications: For hydraulic applications
