Stauff® HBV-2-N16-00B1-M

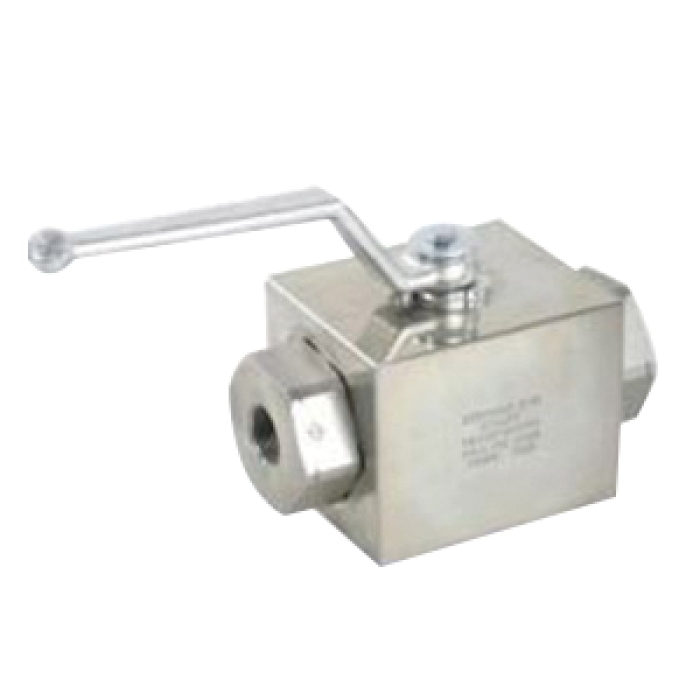

Stauff® HBV-2-N Carbon Steel 2-Way High-Pressure Block Body Ball Valve, 1 in FPT, 12000 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA HBV2N1600B1M
  • MPN: HBV-2-N16-00B1-M
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 2-Way High-Pressure Block Body Ball Valve, HBV-2-N Series, Nominal Size: 1 in, Connection Type: FPT, Actuator Type: Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, 10.65 in Length, 7.01 in Height, 5.84 in Width, -4 to 212 deg F, 12000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Length      :      10.65 in
Height      :      7.01 in
Width      :      5.84 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      12000 psi
Series      :      HBV-2-N
Nominal Size      :      1 in
Connection Type      :      FPT
Actuator Type      :      Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
