Stauff® LBV-3-N16-0001-M
Send Print
  1. pin-int

Stauff® LBV-3-N16-0001-M

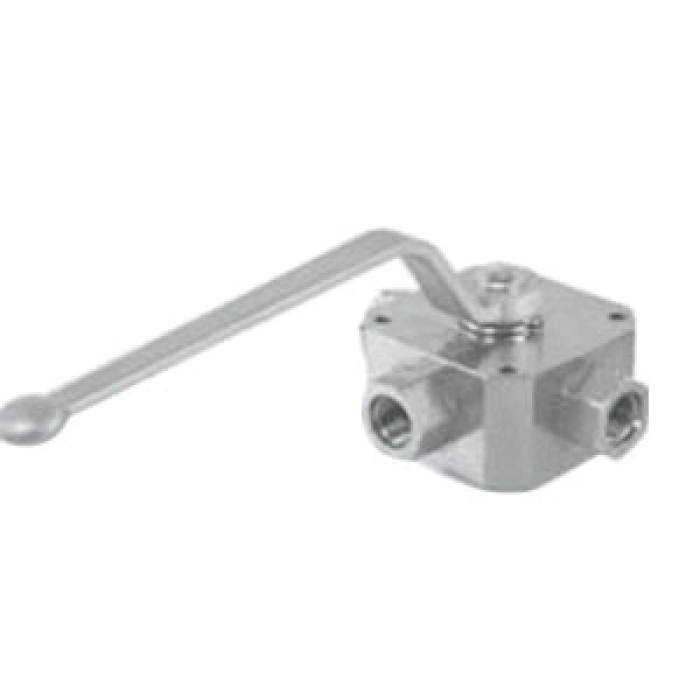

Stauff® LBV-3-N Zinc/Iron-Plated Carbon Steel 3-Way Diverter High-Pressure Block Body Ball Valve, 1 in FPT, 4500 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA LBV3N160001M
  • MPN: LBV-3-N16-0001-M
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 3-Way Diverter High-Pressure Block Body Ball Valve, LBV-3-N Series, Nominal Size: 1 in, Connection Type: FPT, Actuator Type: Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, Finish: Zinc/Iron-Plated, 6.77 in Length, 4.06 in Height, -4 to 212 deg F, 4500 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Finish      :      Zinc/Iron-Plated
Length      :      6.77 in
Height      :      4.06 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      4500 psi
Series      :      LBV-3-N
Nominal Size      :      1 in
Connection Type      :      FPT
Actuator Type      :      Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
  • Block body design for in-line assembly
  • Multi-way valve with trunnion style ball
  • Supplied with lever
  • L-bore 3-way selector
  • 90 deg porting pattern

Applications: For hydraulic applications
