Stauff® MBBV-2-16-0001-M-LD4
Send Print
  1. pin-int

Stauff® MBBV-2-16-0001-M-LD4

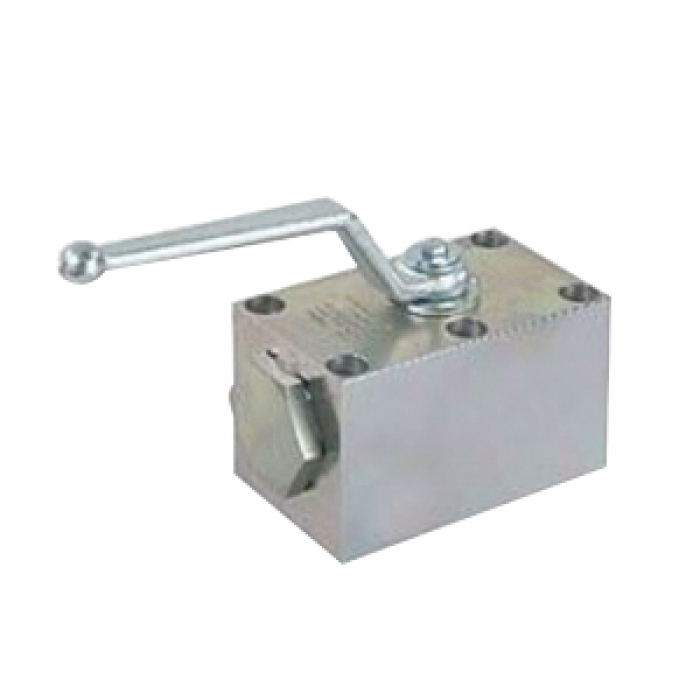

Stauff® MBBV-2 Zinc/Iron-Plated Carbon Steel 2-Way High-Pressure Block Body Ball Valve, 25 Manifold Mount, 6000 psi, With Locking Device

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA MBBV2160001MLD4
  • MPN: MBBV-2-16-0001-M-LD4
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 2-Way High-Pressure Block Body Ball Valve, MBBV-2 Series, Nominal Size: 25, Connection Type: Manifold Mount, Actuator Type: Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, Finish: Zinc/Iron-Plated, 3.15 in Length, 5.87 in Height, 5.31 in Width, -4 to 212 deg F, 6000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Finish      :      Zinc/Iron-Plated
Length      :      3.15 in
Height      :      5.87 in
Width      :      5.31 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      6000 psi
Series      :      MBBV-2
Nominal Size      :      25
Connection Type      :      Manifold Mount
Actuator Type      :      Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
  • Block body design for manifold-mounting
  • Improved manifold design eliminates external piping and connectors
  • Supplied with lever
  • Either 4 or 6 mounting holes for added safety
  • Supplied with locking device

Applications: For hydraulic applications
