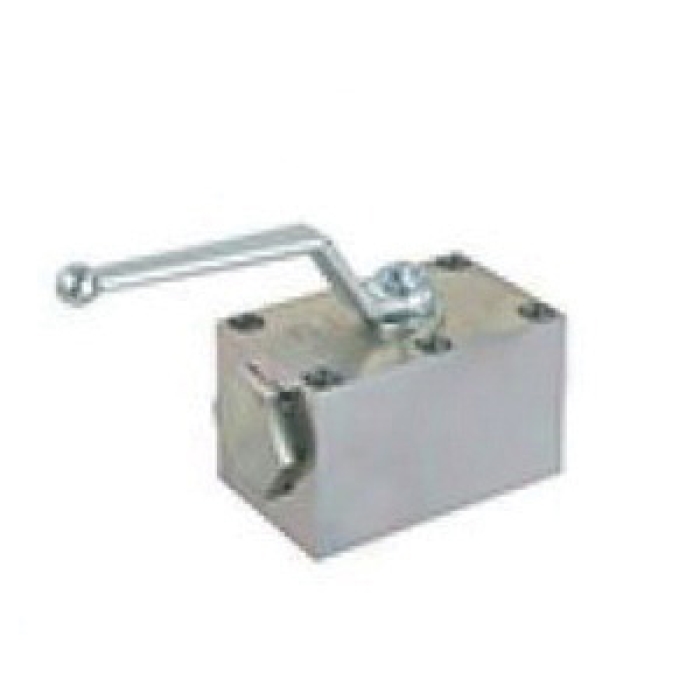

Stauff® MBBV-2-04-0001-M

Stauff® MBBV-2 Zinc/Iron-Plated Carbon Steel 2-Way High-Pressure Block Body Ball Valve, 6 Manifold Mount, 7250 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA MBBV2040001M
  • MPN: MBBV-2-04-0001-M
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 2-Way High-Pressure Block Body Ball Valve, MBBV-2 Series, Nominal Size: 6, Connection Type: Manifold Mount, Actuator Type: Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, Finish: Zinc/Iron-Plated, 1.57 in Length, 2.64 in Height, 2.24 in Width, -4 to 212 deg F, 7250 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Finish      :      Zinc/Iron-Plated
Length      :      1.57 in
Height      :      2.64 in
Width      :      2.24 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      7250 psi
Series      :      MBBV-2
Nominal Size      :      6
Connection Type      :      Manifold Mount
Actuator Type      :      Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
  • Block body design for manifold-mounting
  • Improved manifold design eliminates external piping and connectors
  • Supplied with lever
  • Either 4 or 6 mounting holes for added safety

Applications: For hydraulic applications
