Stauff® XBV-4-N06-0001-M
Send Print
  1. pin-int

Stauff® XBV-4-N06-0001-M

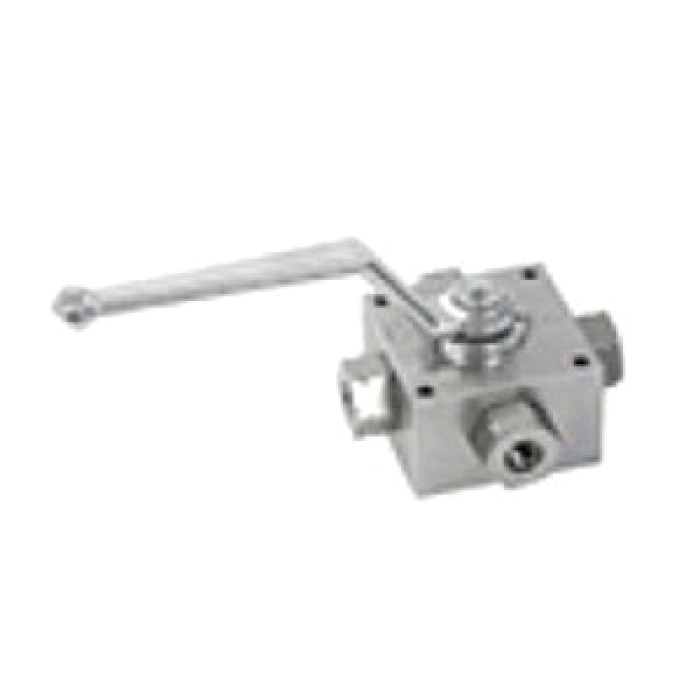

Stauff® XBV-4-N Zinc/Iron-Plated Carbon Steel High-Pressure Block Body Ball Valve, 3/8 in NPT, 7250 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA XBV4N060001M
  • MPN: XBV-4-N06-0001-M
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® High-Pressure Block Body Ball Valve, XBV-4-N Series, Nominal Size: 3/8 in, Connection Type: NPT, Actuator Type: Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, Finish: Zinc/Iron-Plated, 4.53 in Length, 2.68 in Height, -4 to 212 deg F, 7250 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Finish      :      Zinc/Iron-Plated
Length      :      4.53 in
Height      :      2.68 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      7250 psi
Series      :      XBV-4-N
Nominal Size      :      3/8 in
Connection Type      :      NPT
Actuator Type      :      Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
  • Block body design for in-line assembly
  • Multi-way valve with trunnion style ball
  • Supplied with lever
  • Double L-bore 4-way selector

Applications: For hydraulic applications
