Dixon® 3-480-3501
Send Print
  1. pin-int

Dixon® 3-480-3501

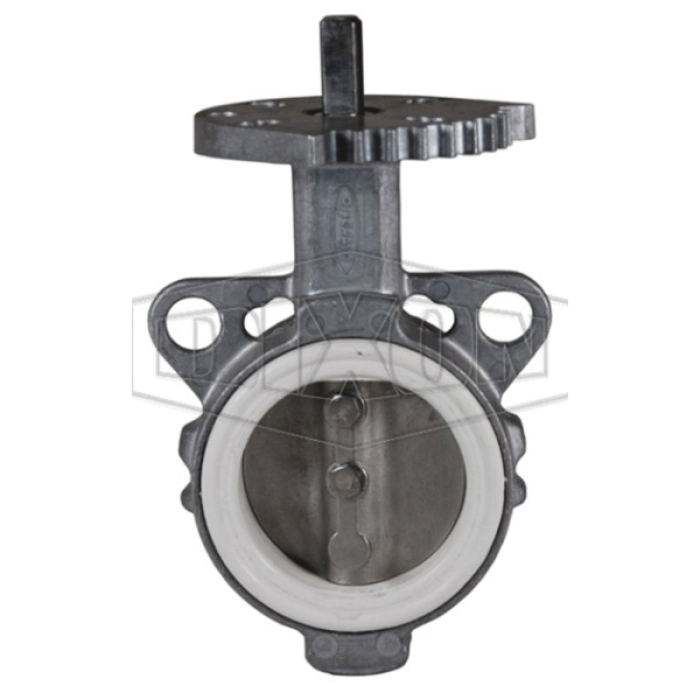

Dixon® 3-480-3501 Aluminum/Stainless Steel 1-Piece Butterfly Valve with Disc, 3 in

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 3-480-3501
  • MPN: 3-480-3501
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® 1-Piece Butterfly Valve with Disc, Nominal Size: 3 in, Actuator Type: Handle, Aluminum/Stainless Steel, White Buna Seal

California residents see Prop 65 WARNINGS

Product Type      :      Butterfly Valve
Nominal Size      :      3 in
Actuator Type      :      Handle
Material      :      Aluminum/Stainless Steel
Seal Material      :      White Buna
  • Handles are high strength 713 aluminum, with a retrogressive re-aging process which creates as stronger handle than the cast iron handle which are commonly used in the industry
  • Stainless discs are standard for superior wear resistance
  • Flange gaskets are not required, the valves elastomer seat also doubles as the flange gasket
  • Aluminum body with stainless steel disc
  • Polymer bushings
  • Stainless steel spring, stem and locking lever pin
  • Aluminum handle and throttling plate

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • FDA Approved

    Applications: Used on dry bulk tankers to control the flow of product
