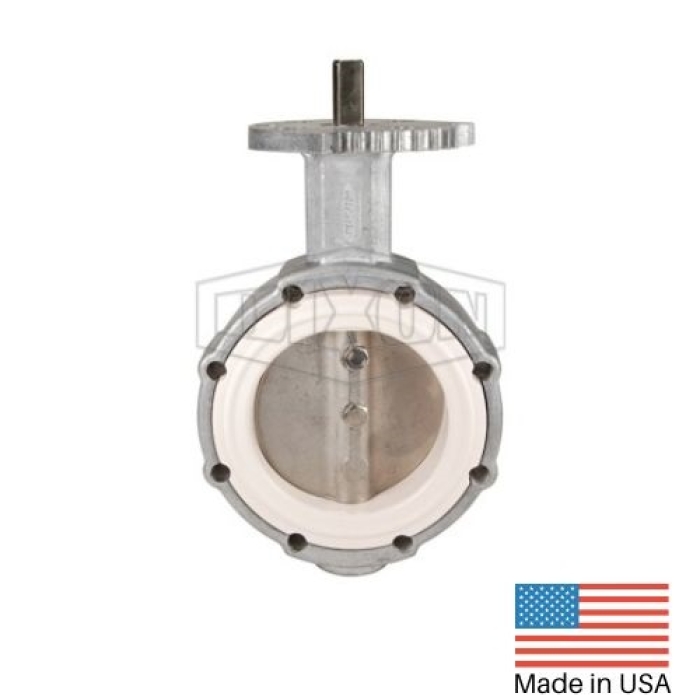

Dixon® 1-Piece Butterfly Valve, Nominal Size: 4 in, Connection Type: TTMA Flange, Actuator Type: Handle, Aluminum, Buna-N Seal
California residents see Prop 65 WARNINGS
| Product Type | : | Butterfly Valve |
| Nominal Size | : | 4 in |
| Connection Type | : | TTMA Flange |
| Actuator Type | : | Handle |
| Material | : | Aluminum |
| Seal Material | : | Buna-N |
- Handles are high-strength 713 aluminum, with a retrogressive re-aging process which creates a stronger handle than the cast iron handle that is commonly used in the industry
- Stainless steel discs are standard for superior wear resistance
- Flange gaskets are not required, the valves elastomer seat also doubles as the flange gasket
- Polymer bushings
- FDA approved Buna-N seals and seats, -20 to 275 deg F
- Stainless steel spring, stem and locking lever pin
- Aluminum handle and throttling plate
Applications: Used on dry bulk tankers to control the flow of product
