Dixon® B5101V300CC-C
Send Print
  1. pin-int

Dixon® B5101V300CC-C

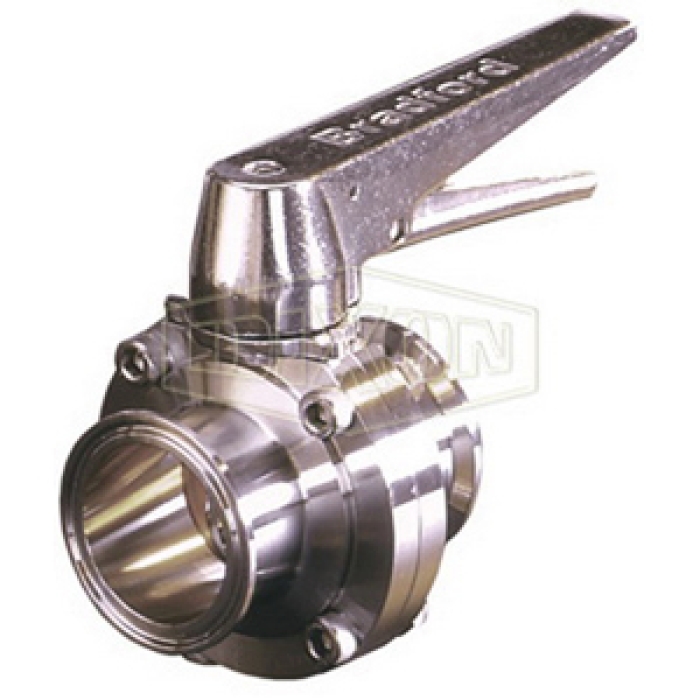

Dixon® B5101 316L Stainless Steel Butterfly Valve, 3 in Clamp, 110 psi, Trigger Handle, FKM Trim

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN B5101V300CC-C
  • MPN: B5101V300CC-C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Butterfly Valve, B5101 Series, Nominal Size: 3 in, Connection Type: Clamp, Actuator Type: Trigger Handle, 316L Stainless Steel, FKM Trim, Flow Coefficient: 372 Cv, 5.2 in Length, 4.1 in Width, 32 - 200 deg F, 110 psi, Packaging Quantity: 1 BX

California residents see Prop 65 WARNINGS

Product Type      :      Butterfly Valve
Flow Coefficient      :      372 Cv
Length      :      5.2 in
Width      :      4.1 in
Temperature Rating      :      32 - 200 deg F
Pressure Rating      :      110 psi
Packaging Quantity      :      1 BX
Series      :      B5101
Nominal Size      :      3 in
Connection Type      :      Clamp
Actuator Type      :      Trigger Handle
Material      :      316L Stainless Steel
Trim Material      :      FKM
  • 100% hydraulic tested/100% inspected
  • Field serviceable (no special tools required)
  • Lockout/tagout handle
  • All wetted surfaces are sanitary finished to <32R¿
  • video https:www.youtube.com/embed/KFJWTAnjQLE
