Dixon® B5102E400-A

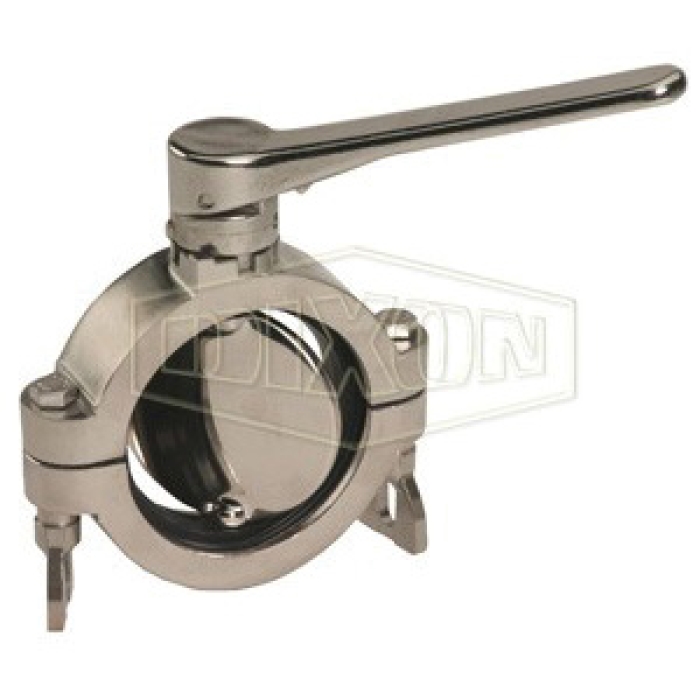

Dixon® B5102 316L Stainless Steel Butterfly Valve, 4 in Grooved Clamp, 70 psi, 3-Position Reversible Handle, EPDM Trim

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN B5102E400-A
  • MPN: B5102E400-A
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Butterfly Valve, B5102 Series, Nominal Size: 4 in, Connection Type: Grooved Clamp, Actuator Type: 3-Position Reversible Handle, 316L Stainless Steel, EPDM Trim, Flow Coefficient: 800 Cv, 6.4 in Width, 15 - 200 deg F, 70 psi

California residents see Prop 65 WARNINGS

Product Type      :      Butterfly Valve
Flow Coefficient      :      800 Cv
Width      :      6.4 in
Temperature Rating      :      15 - 200 deg F
Pressure Rating      :      70 psi
Series      :      B5102
Nominal Size      :      4 in
Connection Type      :      Grooved Clamp
Actuator Type      :      3-Position Reversible Handle
Material      :      316L Stainless Steel
Trim Material      :      EPDM
  • All sizes use only 3/4 in of line space
  • The grooved clamp housing connects directly to the corresponding sanitary clamp size
  • 100% tested/100% inspected
  • Field serviceable (no special tools required)
  • All wetted surfaces are sanitary finish 316L stainless steel
  • PTFE valve disc bushings reduce friction and increase cycle life
