Dixon® 4041RD

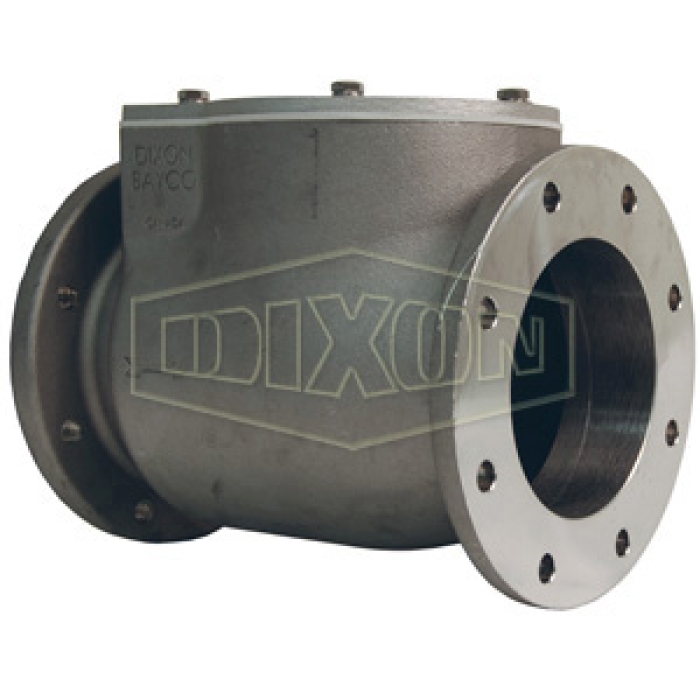

Dixon® Bayco High Flow 4041RD Aluminum Swing Check Valve with Round TTMA Flange, 4 in

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 4041RD
  • MPN: 4041RD
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Bayco High Flow Swing Check Valve with Round TTMA Flange, Nominal Size: 4 in, Connection Type: TTMA Flange, Aluminum, 9 in Length, 400 deg F

California residents see Prop 65 WARNINGS

Product Type      :      Check Valve
Length      :      9 in
Temperature Rating      :      400 deg F
Nominal Size      :      4 in
Connection Type      :      TTMA Flange
Material      :      Aluminum
  • When in use the flapper can swing completely out of the air path, resulting in increased air flow and subsequently increased product flow
  • Complete repairs can easily be carried out on all high flow swing check valves without removing from the tank
  • Flapper return springs are standard
  • Huck bolted flapper assembly prevents loose parts from contaminating the product
  • Aluminum body and inspection lid
  • Stainless steel hardware
  • Metal-to-metal seal

Applications: Used on both the blower and trailer, designed to prevent product backflow if a product line should become plugged
