Legris by Dixon® 70655614
Send Print
  1. pin-int

Legris by Dixon® 70655614

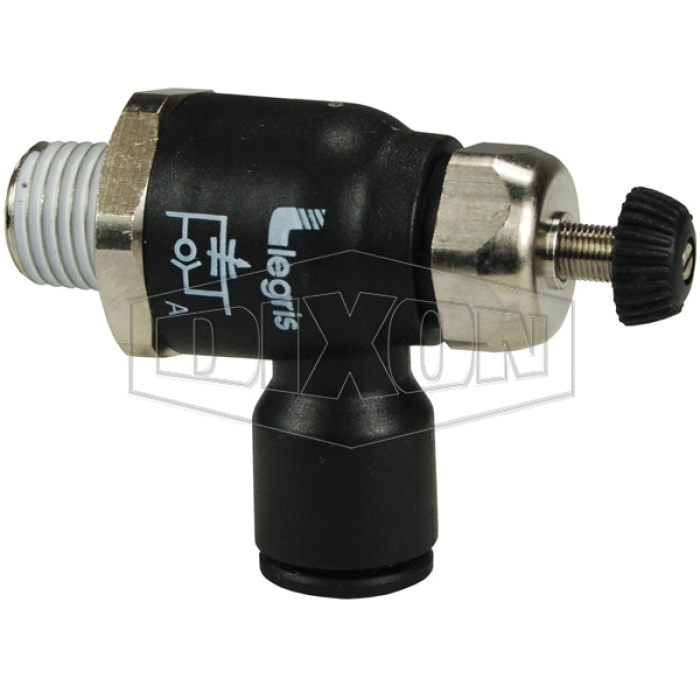

Dixon® 70655614 Nylon Compact Flow Control Valve, 1/4 in MPT, 15 - 145 psi

  • Manufacturers: Dixon
  • Brand Name: Legris by Dixon®
  • Tipco Part No: DXN 70655614
  • MPN: 70655614
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Legris by Dixon® Compact Flow Control Valve, Nominal Size: 1/4 in, Connection Type: MPT, Nylon, 32 - 158 deg F, 15 - 145 psi

California residents see Prop 65 WARNINGS

Product Type      :      Control Valve
Temperature Rating      :      32 - 158 deg F
Pressure Rating      :      15 - 145 psi
Nominal Size      :      1/4 in
Connection Type      :      MPT
Material      :      Nylon
  • Controls the speed of a cylinder by regulating air exhaust
  • Intake air flows freely through the flow control and exhaust air is metered out through a specially designed fine adjustment screw
  • Push-to-connect
  • Meter out flow control
  • One-piece design
