Stauff® FCH-12-B-U
Send Print
  1. pin-int

Stauff® FCH-12-B-U

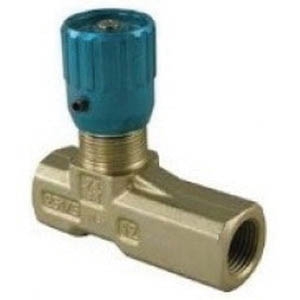

Stauff® FCH Nickel-Plated Carbon Steel Flow Control Valve, 1/2 in NPT, 5000 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA FCH12BU
  • MPN: FCH-12-B-U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® Flow Control Valve, FCH Series, Nominal Size: 1/2 in, Connection Type: NPT, Carbon Steel, FKM/PTFE Seal, Finish: Nickel-Plated, 3.37 in Height, -30 to 250 deg F, 5000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Control Valve
Finish      :      Nickel-Plated
Height      :      3.37 in
Temperature Rating      :      -30 to 250 deg F
Pressure Rating      :      5000 psi
Series      :      FCH
Nominal Size      :      1/2 in
Connection Type      :      NPT
Material      :      Carbon Steel
Seal Material      :      FKM/PTFE
  • Flow setting can be locked with handle set screw
  • Fluid control and flow shut-off in direction A-B

Applications: For in-line mounting
