Dixon® DFVS25
Send Print
  1. pin-int

Dixon® DFVS25

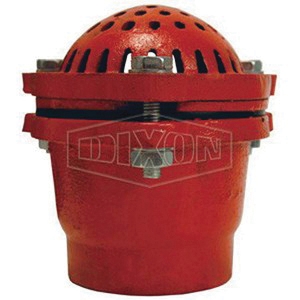

Dixon® DFVS25 Painted Malleable Iron Foot Valve, 2 in FPT, Rubber Seal

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DFVS25
  • MPN: DFVS25
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Foot Valve, Nominal Size: 2 in, Connection Type: FPT, Malleable Iron, Rubber Seal, Finish: Painted, 5-1/4 in Height, 5-3/4 in Width

California residents see Prop 65 WARNINGS

Product Type      :      Foot Valve
Nominal Size      :      2 in
Connection Type      :      FPT
Material      :      Malleable Iron
Seal Material      :      Rubber
Finish      :      Painted
Height      :      5-1/4 in
Width      :      5-3/4 in

Applications: For use on water suction hose to prevent pump from losing it's prime

Safety Notes:

  • Must be installed in the vertical position.
  • For water service only.
