Dixon® WDGV3025F
Send Print
  1. pin-int

Dixon® WDGV3025F

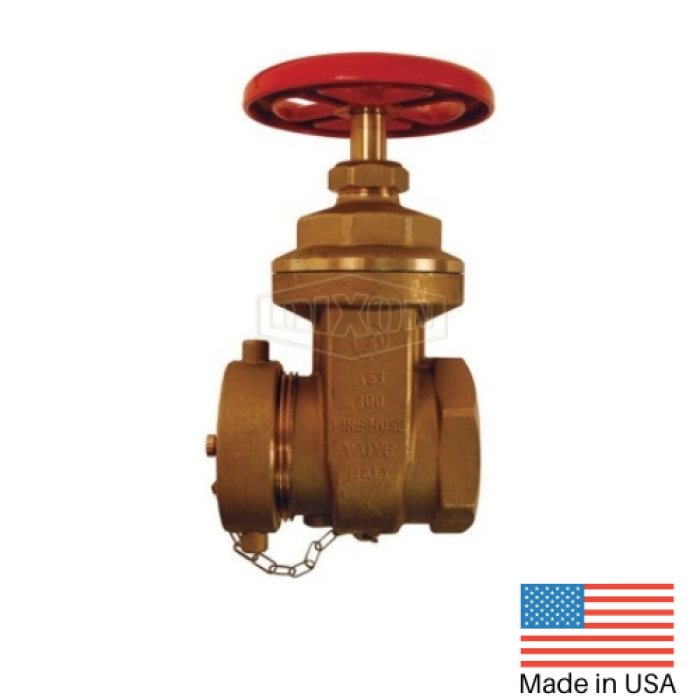

Dixon® WDGV3025F Satin Forged Brass Wedge Disc Gate Valve, 3 x 2-1/2 in FNPT x MNST/NH, 300 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN WDGV3025F
  • MPN: WDGV3025F
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Wedge Disc Gate Valve, Nominal Size: 3 x 2-1/2 in, Connection Type: FPT x MNST/NH, Actuator Type: Handwheel, Non-Rising Stem, Forged Brass, Finish: Satin, 300 psi

California residents see Prop 65 WARNINGS

Product Type      :      Gate Valve
Nominal Size      :      3 x 2-1/2 in
Connection Type      :      FPT x MNST/NH
Actuator Type      :      Handwheel
Stem Type      :      Non-Rising
Material      :      Forged Brass
Finish      :      Satin
Pressure Rating      :      300 psi
  • Straightway pattern
  • Red iron handwheel
  • Brass cap and chain
  • Solid wedge disc with tapered seats
  • pdfSpecification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RWDGV250F_SS.pdf
