Dixon® FFB101
Send Print
  1. pin-int

Dixon® FFB101

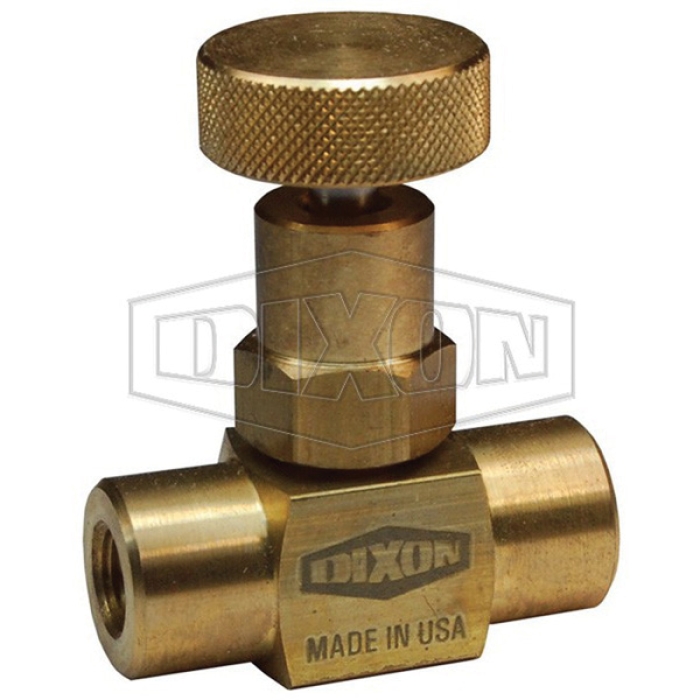

Dixon® FFB101 Brass Mini Needle Valve, 1/8 in FPT, 6000 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN FFB101
  • MPN: FFB101
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Mini Needle Valve, Nominal Size: 1/8 in, Connection Type: FPT, Actuator Type: Knurled Knob Handle, Brass, 316 Stainless Steel Trim, FKM Seal, Flow Coefficient: 0.42 Cv, 6000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Needle Valve
Flow Coefficient      :      0.42 Cv
Pressure Rating      :      6000 psi
Nominal Size      :      1/8 in
Connection Type      :      FPT
Actuator Type      :      Knurled Knob Handle
Material      :      Brass
Trim Material      :      316 Stainless Steel
Seal Material      :      FKM
  • A FKM O-ring seal and a PTFE back-up ring below the threads protects the mini valve from corrosion and galling
  • Stem threads are rolled for strength and ease of operation
  • Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 psi
