NOSHOK® 142-EFFC-HL3

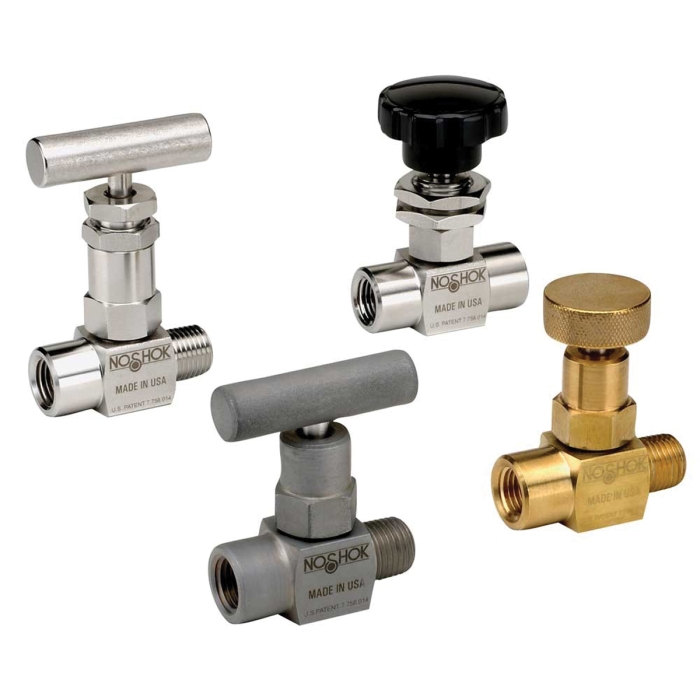

NOSHOK® 100 Zinc/Nickel-Plated Steel Hard Seat Mini Needle Valve, 7/16-20 UNF-2B Extended FPT x FPT, 10000 psi

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 142-EFFC-HL3
  • MPN: 142-EFFC-HL3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK Hard Seat Mini Needle Valve, 100 Series, Nominal Size: 7/16-20 UNF-2B, Connection Type: Extended FPT x FPT, Actuator Type: Round Knurled Handle, Steel, FKM/PTFE Seal, Flow Coefficient: 0.42 Cv, Finish: Zinc/Nickel-Plated, 1-13/16 in Length, 2-1/2 in Height, 3/4 in Width, 200 deg F, 10000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Needle Valve
Flow Coefficient      :      0.42 Cv
Finish      :      Zinc/Nickel-Plated
Length      :      1-13/16 in
Height      :      2-1/2 in
Width      :      3/4 in
Temperature Rating      :      200 deg F
Pressure Rating      :      10000 psi
Series      :      100
Nominal Size      :      7/16-20 UNF-2B
Connection Type      :      Extended FPT x FPT
Actuator Type      :      Round Knurled Handle
Material      :      Steel
Seal Material      :      FKM/PTFE
  • Compact size valve built for maximum durability and robust performance in the toughest applications
  • 100% helium leak tested to 1 x 10-4 ml/s for performance and reliability
  • FKM O-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling
  • All stem threads are rolled for strength and ease of operation
  • Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve
  • 1 in round knurled handle
