NOSHOK® 152-MFS-PM1

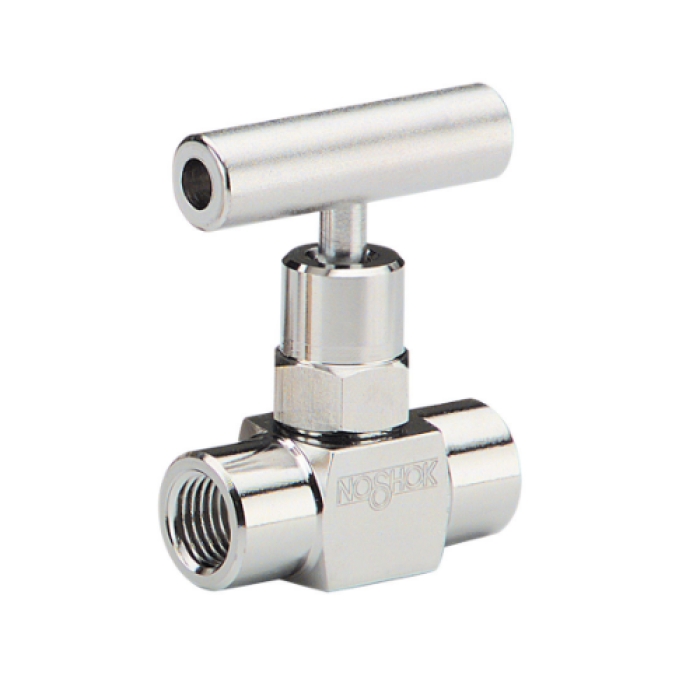

NOSHOK® 150 Electropolished 316 Stainless Steel Soft Tip Mini Needle Valve, 1/4 in MPT x FPT, 6000 psi, Panel Mount

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 152-MFS-PM1
  • MPN: 152-MFS-PM1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK Soft Tip Mini Needle Valve, 150 Series, Nominal Size: 1/4 in, Connection Type: MPT x FPT, 316 Stainless Steel, 316 Stainless Steel Stem Trim, FKM/PTFE Seal, Flow Coefficient: 0.42 Cv, Finish: Electropolished, 1-13/16 in Length, 2-1/2 in Height, 200 deg F, 6000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Needle Valve
Flow Coefficient      :      0.42 Cv
Finish      :      Electropolished
Length      :      1-13/16 in
Height      :      2-1/2 in
Temperature Rating      :      200 deg F
Pressure Rating      :      6000 psi
Series      :      150
Nominal Size      :      1/4 in
Connection Type      :      MPT x FPT
Material      :      316 Stainless Steel
Trim Material      :      316 Stainless Steel Stem
Seal Material      :      FKM/PTFE
  • Compact size valve built for maximum durability and robust performance in the toughest applications
  • 100% helium leak tested to 1 x 10-4 ml/s for performance and reliability
  • Soft tip valves feature a patented Delrin® non-rotating soft tip stem and a back-up metal-to-metal seal
  • FKM O-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling
  • All stem threads are rolled for strength and ease of operation
  • Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve
  • Made in USA
  • One nut panel-mount
