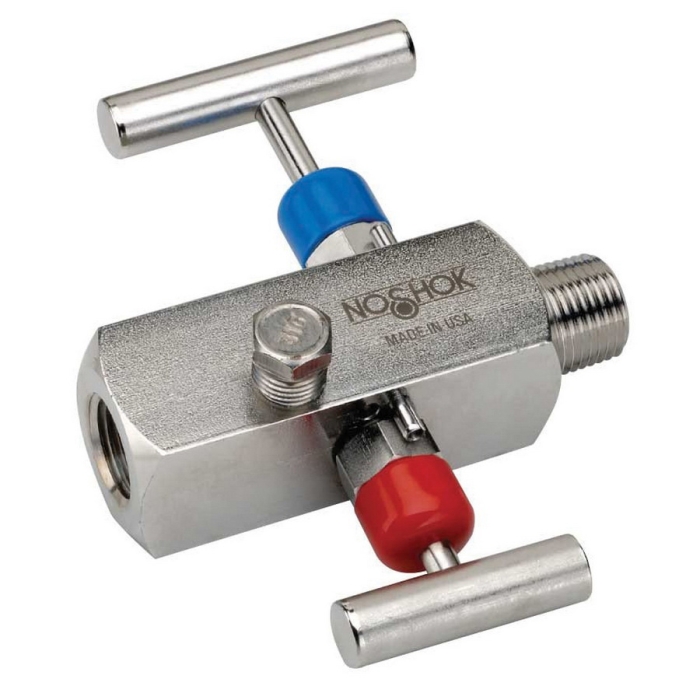

NOSHOK® 604-MFS-P1
NOSHOK® 600 Electropolished 316 Stainless Steel Block and Bleed Hard Seat Needle Valve, 1/2 in MPT x FPT, 10000 psi, PTFE Packing
- Manufacturers: NOSHOK
- Brand Name: NOSHOK®
- Tipco Part No: NOS 604-MFS-P1
- MPN: 604-MFS-P1
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
NOSHOK Block and Bleed Hard Seat Needle Valve, 600 Series, Nominal Size: 1/2 in, Connection Type: MPT x FPT, 316 Stainless Steel, 316 Stainless Steel, PTFE Packing Trim, FKM/PTFE Seal, Flow Coefficient: 0.44 Cv, Finish: Electropolished, 3-1/2 in Length, 3-25/32 in Height, 200 deg F, 10000 psi
California residents see Prop 65 WARNINGS
| Product Type | : | Needle Valve |
| Flow Coefficient | : | 0.44 Cv |
| Finish | : | Electropolished |
| Length | : | 3-1/2 in |
| Height | : | 3-25/32 in |
| Temperature Rating | : | 200 deg F |
| Pressure Rating | : | 10000 psi |
| Series | : | 600 |
| Nominal Size | : | 1/2 in |
| Connection Type | : | MPT x FPT |
| Material | : | 316 Stainless Steel |
| Trim Material | : | 316 Stainless Steel, PTFE Packing |
| Seal Material | : | FKM/PTFE |
- Block and bleed design allows pressure to be bleed-off without disturbing the permanent piping installation, allowing quick and easy removal or replacement of instruments
- 100% helium leak tested to 1 x 10-4 ml/s for performance and reliability
- Blowout-proof stem provides a secondary stem seal in the full open position
- FKM O-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling
- All stem threads are rolled for strength and ease of operation
- 1-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
- Slotted spring pin to prevent accidental loosening
- Vinyl dust cap for bonnet and stem
- 0.09 in bleed hole located on the bottom is controlled by a 1/4-20 UNF 2A bleed screw
- Made in USA
