Stauff® DV-25-VU
Send Print
  1. pin-int

Stauff® DV-25-VU

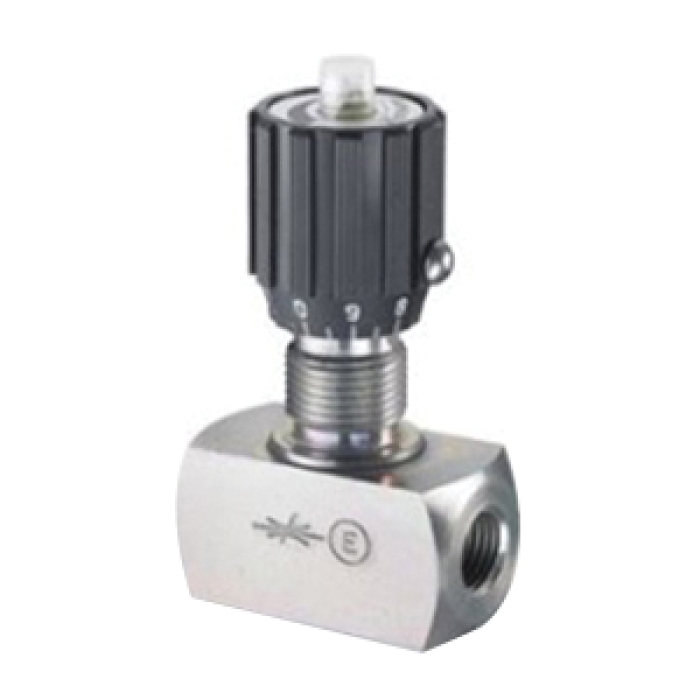

Stauff® DV Series Zinc-Plated Carbon Steel Throttle and Shut-Off Needle Valve, 1-1/4 in SAE Female UN/UNF, 5000 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA DV25VU
  • MPN: DV-25-VU
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® Throttle and Shut-Off Needle Valve, DV Series, Nominal Size: 1-1/4 in, Connection Type: SAE Female Threaded, Carbon Steel, FKM Seal, Finish: Zinc-Plated, 4-1/4 in Length, 6.14 in Height, 1.97 in Width, -4 to 212 deg F, 5000 psi

Product Type      :      Needle Valve
Finish      :      Zinc-Plated
Length      :      4-1/4 in
Height      :      6.14 in
Width      :      1.97 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      5000 psi
Series      :      DV
Nominal Size      :      1-1/4 in
Connection Type      :      SAE Female Threaded
Material      :      Carbon Steel
Seal Material      :      FKM
  • Designed for in-line assembly with female BSP, NPT and SAE threaded connections
  • Graduated turning knob and coded spindle to accurately control flow
  • Set screw located on side of turning knob to lock valve in position
  • Made in Germany

Applications: Hydraulic fluids
