Dixon® 2180B/15

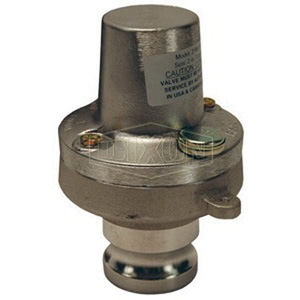

Dixon® 2180B/15 Aluminum Air Relief Valve, 2 in, 15 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 2180B/15
  • MPN: 2180B/15
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Air Relief Valve, Nominal Size: 2 in, Connection Type: Cam and Groove Coupling, Aluminum, 15 psi

California residents see Prop 65 WARNINGS

Product Type      :      Air Relief Valve
Pressure Rating      :      15 psi
Nominal Size      :      2 in
Connection Type      :      Cam and Groove Coupling
Material      :      Aluminum
  • Designed specifically for use on trailer tanks containing dry bulk products
  • If a system blockage were to occur the valves are designed to vent to atmosphere once the valve pressure setting is achieved
  • 500 - 950 scfm relieving capacity
  • Installed cup seal deters tampering
  • Bayloy body eliminates thread galling
  • Bayloy vent cowl with aluminum upper
  • Bronze poppet
  • White food-grade silicone diaphragm
  • +3/0 psi set pressure tolerance

Applications: For trailer/tank-mounted air relief valve

Safety Notes:

  • Not intended for blower service (for blower service applications see the 2182 series air relief valves).
