TIPCO Sealing SAU 1IN TFM/EPDM P2

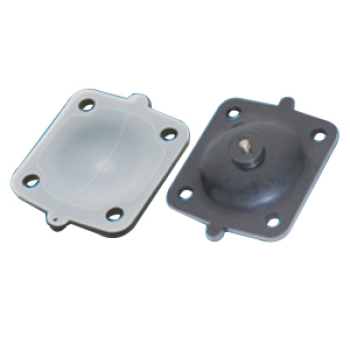

TIPCO Sealing Sanitary Gasket NewFlo™ NSD PTFE 2-Piece Replacement Diaphragm, 1 in Bayonet, For Saunders® Valves
- Manufacturers: TIPCO Technologies
- Brand Name: TIPCO Sealing
- Tipco Part No: SAU 1IN TFM/EPDM P2
- MPN: SAU 1IN TFM/EPDM P2
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
TIPCO Sealing Sanitary Gasket NewFlo™ 2-Piece Replacement Diaphragm, NSD Series, Nominal Size: 1 in, Connection Type: Bayonet, PTFE, -20 to 300 deg F, For Use With: Saunders® Valves
| Product Type | : | Replacement Diaphragm |
| Temperature Rating | : | -20 to 300 deg F |
| For Use With | : | Saunders® Valves |
| Series | : | NSD |
| Nominal Size | : | 1 in |
| Connection Type | : | Bayonet |
| Material | : | PTFE |
Genuine Dyneon TFM from 3M when used in conjunction with Newman’s proprietary processing has resulted in the highest chemical resistance and the lowest permeability and makes it ideal for almost all processing conditions where extended service life is desired. It is resistant to almost all chemicals, solvents and CIP solutions and has been tested to 500 1 hr steam cycles/100000 valve cycles in many valve configurations. It is ideal for continuous steam, hot WFI and processing areas. These diaphragms are shipped together with a paired elastomer backing piece made of Newman 2107 EPDM.
Applications: For continuous steam, hot WFI and processing areas
