Adaptall 9029-16X1.5 ADC 9029-16X1.5 | Tipco Technologies
Adaptall 9029-16X1.5
Send Print
  1. pin-int

Adaptall 9029-16X1.5

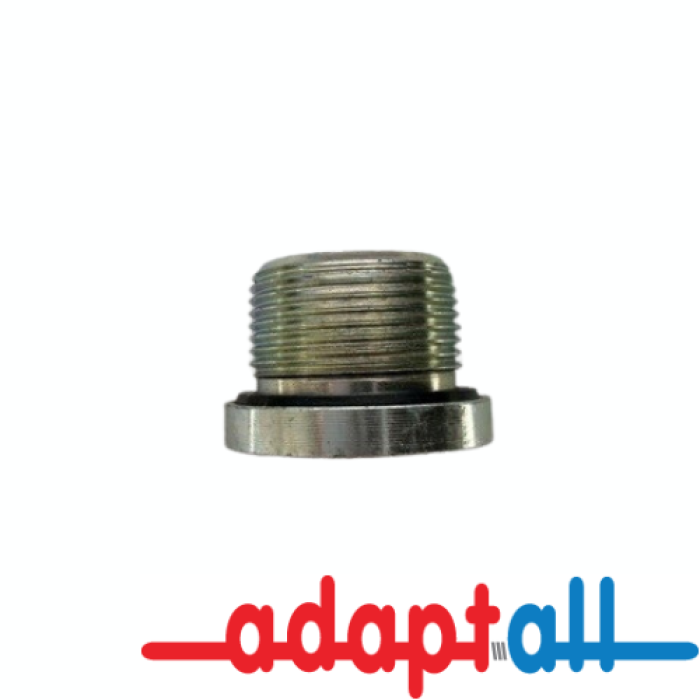

Adaptall 9029 Trivalent Silver-Plated Carbon Steel Plug, 16 mm Male Metric Port

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9029-16X1.5
  • MPN: 9029-16X1.5
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9029 Trivalent Silver-Plated Carbon Steel Plug, Connection Size 1: 16 mm, Gender 1: Male, Connection Type 1: Metric Port 4000 psi

Series      :      9029
Connection Size 1      :      16 mm
Gender 1      :      Male
Connection 1      :      16 mm
Shape      :      Plug
Thread Size 1      :      M16 x 1.5
Finish      :      Trivalent Silver-Plated
Dimension Standards      :      DIN 7631, ISO 9974, ISO 6149
Length      :      17.2 mm
Fitting Type      :      Plug
Hex Size      :      22 mm
Material      :      Carbon Steel
Pressure Rating      :      4000 psi
Connection Type 1      :      Metric Port
