Aeroquip® 202413-8-8S

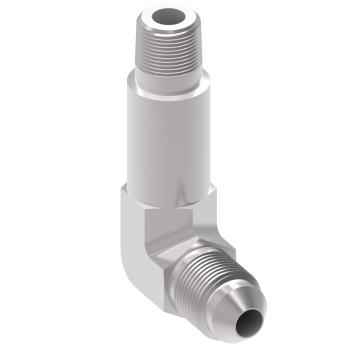

Aeroquip® 202413 Dura-Kote Carbon Steel 90 deg Elbow, 1/2 in Male JIC x 1/2 in Male NPT

Manufacturers: Danfoss
Brand Name: Aeroquip®
Tipco Part No: AER 202413-8-8S
MPN: 202413-8-8S
Alt. MPN: 2501-LL-08-08-FG
UPC: 678146047359
CPN:
Min. Order Qty: 1
Qty. Interval: 1
Register to see Availability

List Price:
Qty Add To Cart
My Catalog
Add / Remove CPN

Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

DESCRIPTION
SPECIFICATIONS
FEATURES
Documents

Aeroquip® 202413 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 1/2 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: NPT, -65 to 250 deg F

Series	:	202413
Connection Size 1	:	1/2 in
Connection Size 2	:	1/2 in
Gender 1	:	Male
Gender 2	:	Male
Connection 1	:	1/2 in JIC
Shape	:	90° Elbow
Connection 2	:	1/2 in NPT
Thread Size 1	:	3/4-16
Thread Size 2	:	1/2-14
Finish	:	Dura-Kote
Dimension Standards	:	SAE 071602
Length	:	1.705 in
Fitting Type	:	90 deg Elbow
Width	:	0.87 in
Height	:	3.305 in
Hex Size	:	0.87 in
Material	:	Carbon Steel
Temperature Rating	:	-65 to 250 deg F
Connection Type 1	:	JIC
Connection Type 2	:	NPT

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries

Aeroquip_210212-16S_CAT.pdf https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_210212-16S_CAT.pdf
CAD File Link https://www.eatonpowersource.com/3d-models/partsolutions/?partnumber=202413-8-8s&modelfilename=pws_0009344stp.stp
Aeroquip_210212-16S_CAT.pdf https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_210212-16S_CAT.pdf
