Aeroquip® 2070-5-5S

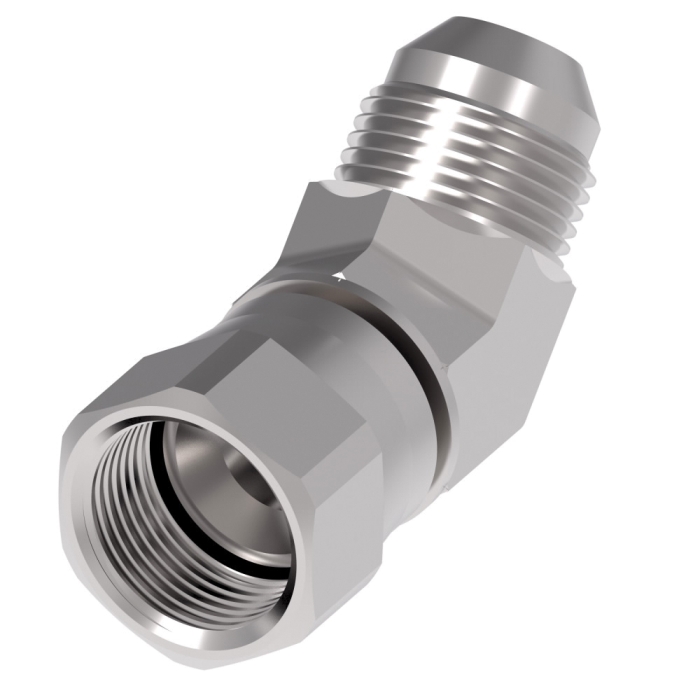

Aeroquip® 2070 Dura-Kote Carbon Steel 45 deg Elbow, 5/16 in Female JIC x 5/16 in Male JIC
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER 2070-5-5S
- MPN: 2070-5-5S
- Alt. MPN: 6502-05-05-FG
- UPC: 678146051493
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® 2070 Dura-Kote Carbon Steel 45 deg Elbow, Connection Size 1: 5/16 in, Gender 1: Female, Connection Type 1: JIC x Connection Size 2: 5/16 in, Gender 2: Male, Connection Type 2: JIC, -65 to 400 deg F
| Series | : | 2070 |
| Connection Size 1 | : | 5/16 in |
| Connection Size 2 | : | 5/16 in |
| Gender 1 | : | Female |
| Gender 2 | : | Male |
| Connection 1 | : | 5/16 in JIC |
| Shape | : | 45° Elbow |
| Connection 2 | : | 5/16 in JIC |
| Thread Size 1 | : | 1/2-20 |
| Thread Size 2 | : | 1/2-20 |
| Finish | : | Dura-Kote |
| Dimension Standards | : | SAE 070321 |
| Length | : | 1.39 in |
| Fitting Type | : | 45 deg Elbow |
| Width | : | 0.62 in |
| Height | : | 0.62 in |
| Hex Size | : | 0.55 x 0.62 in |
| Material | : | Carbon Steel |
| Temperature Rating | : | -65 to 400 deg F |
| Connection Type 1 | : | JIC |
| Connection Type 2 | : | JIC |
Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
