Aeroquip® FF2032T0606S AER FF2032T0606S | Tipco Technologies
Aeroquip® FF2032T0606S
Send Print
  1. pin-int

Aeroquip® FF2032T0606S

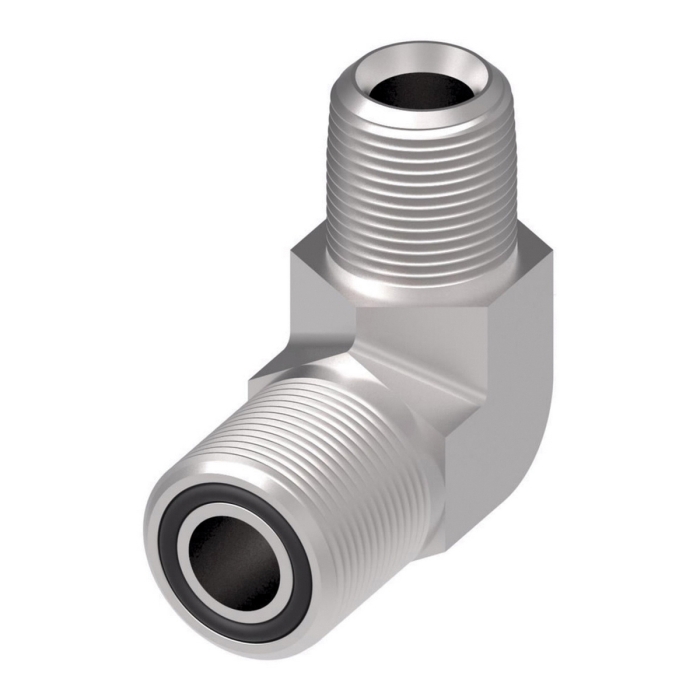

Aeroquip® FF2032T Dura-Kote Carbon Steel 90 deg Elbow, 3/8 in Male O-Ring Face Seal x 3/8 in Male NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF2032T0606S
  • MPN: FF2032T0606S
  • Alt. MPN: FS2501-06-06-FG
  • UPC: 639789287809
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® FF2032T Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 3/8 in, Gender 1: Male, Connection Type 1: O-Ring Face Seal x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: NPT, -65 to 400 deg F

Series      :      FF2032T
Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/8 in ORFS
Shape      :      90° Elbow
Connection 2      :      3/8 in NPT
Thread Size 1      :      11/16-16
Thread Size 2      :      3/8-18
Finish      :      Dura-Kote
Dimension Standards      :      SAE J1453, SAE 520202
Length      :      1.38 in
Fitting Type      :      90 deg Elbow
Width      :      0.68 in
Height      :      1.59 in
Hex Size      :      0.68 in
Material      :      Carbon Steel
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      NPT

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
