Brennan 6806-08-08-NWO-FG

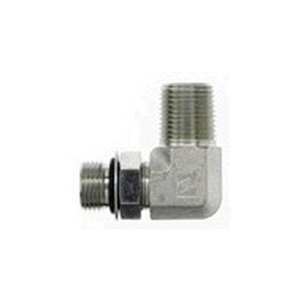

Brennan 6805-NWO-FG Forged Steel 90 deg Elbow, 1/2 in Male O-Ring Boss x 1/2 in Male NPT

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6806-08-08-NWD-FG
  • MPN: 6806-08-08-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 6805-NWO-FG Forged Steel 90 deg Elbow, Connection Size 1: 1/2 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: NPT, 6000 psi

California residents see Prop 65 WARNINGS

Series      :      6805-NWO-FG
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/2 in ORB
Shape      :      90° Elbow
Connection 2      :      1/2 in NPT
Thread Size 1      :      3/4-16
Thread Size 2      :      1/2-14
Fitting Type      :      90 deg Elbow
Hex Size      :      7/8 in
Material      :      Forged Steel
Pressure Rating      :      6000 psi
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      NPT
